Loader electronic scale
Adopting SN-ICS dynamic weighing technology, combined with the measurement equipment that users need to weigh loaded bulk materials in practical applications.
Product Overview
Adopting SN-ICS dynamic weighing technology, combined with the measurement equipment that users need to weigh loaded bulk materials in practical applications. Widely used in places such as vehicle loader capacity, earthwork measurement, and load limit measurement, seamlessly integrated into the loading and weighing process to improve production management efficiency.
Dynamic weighing
Adopting SN-ICS dynamic weighing technology, seismic digital filtering, acceleration compensation algorithm, specially designed for loader weighing research and development, achieving high-precision dynamic calibration weighing.
Anti-interference
The whole machine is designed with EMC, which has super anti-interference ability and seamlessly integrates into the loading and weighing process. It is widely used in places such as vehicle loading capacity, earthwork measurement, and load limit measurement.
High efficiency
USB port, RS232 universal communication protocol, GPRS module optional, multiple ways to upload data implementation; It can store up to 10000 loading records and store data permanently.

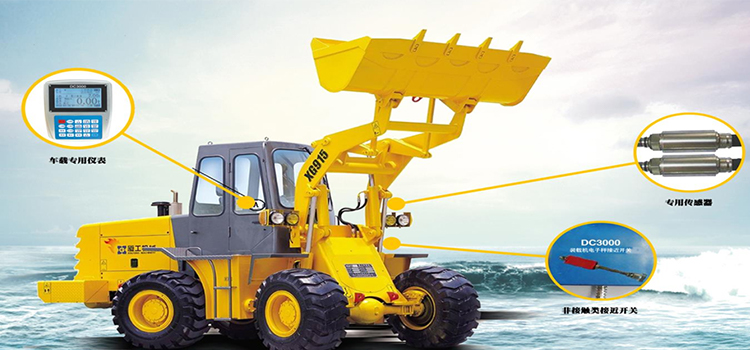

Working Principle
Working principle

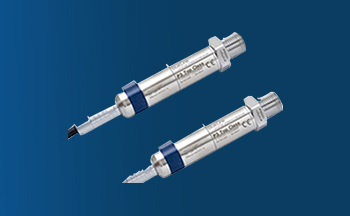

Based on two pressure sensors installed on the inlet and return oil lines of the loading arm cylinder, the pressure changes of the cylinder during the lifting process of the loading arm are measured, and the speed is adjusted. The central processing unit (CPU) in the on-board instrument automatically calculates the weight data and displays the measured weight on the instrument screen.
workflow
-
During the tipping process of the loader, the pressure sensor transmits information to the instrument CPU for data conversion processing. When the locomotive unloads the cargo, the forearm immediately retracts to the starting position, and when the boom lifts past the high-precision position sensor, the loader weighing system immediately displays the weight of the cargo, and the screen displays the total cumulative weight and cumulative number of operations of the cargo.
Operation and Usage
Automatic recording of loading information, voice notification, more focused and worry free operation; The instrument adopts a 40 × 480 dot matrix ultra large TFT color display screen, which can display in multiple languages.

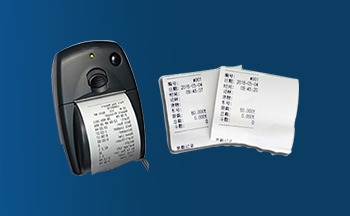

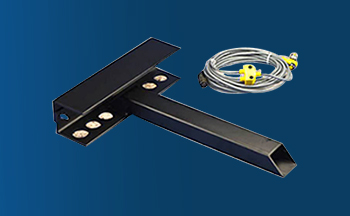

Structural Composition
