KBA12S Mining Intrinsic Safety Image Processing Camera
The KBA12S mining intrinsic safety image processing camera is used in places with gas and coal dust explosion hazards underground in coal mines.
Product Overview
The KBA12S mining intrinsic safety image processing camera is used in places with gas and coal dust explosion hazards underground in coal mines. This camera is a key equipment in the coal mine industrial television system for real-time image monitoring of major production processes, important equipment, and key positions, using wireless transmission. This camera has a compact structure, small size, light weight, explosion-proof, earthquake resistant, moisture-proof, and is suitable for use underground in coal mines. This camera is capable of identifying personnel in application scenarios and issuing alarm messages, achieving regional security protection.
clear imaging
The camera is capable of presenting high-quality monitoring images in low light conditions, with a minimum illumination of ≤ 0.05lx, horizontal clarity of ≥ 400 lines, and grayscale discrimination level of ≥ 7.
Intelligent Recognition
The camera has facial detection, recognition, and capture functions, as well as scene recognition function. When someone enters the monitoring range, it can automatically recognize and capture.
intrusion alarm
Equipped with tripping wire intrusion function and sound and light alarm function, it accurately identifies and detects personnel. When someone enters the monitoring range, it automatically sends out sound and light alarm information.

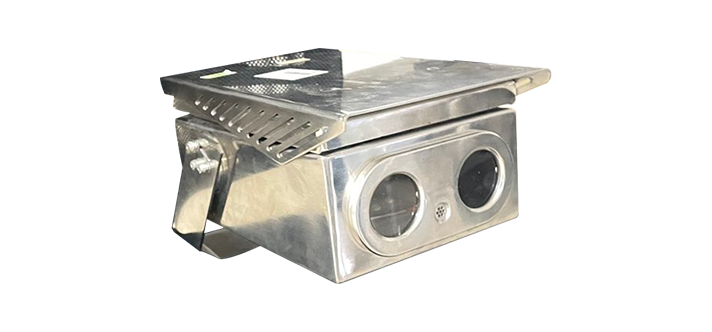

Working Principle
Optical imaging and signal conversion
External light enters the lens through a glass window, focuses on the CCD chip, converts the light signal into an electrical signal, outputs a full TV signal, and completes image acquisition and preliminary conversion.
Video signal processing and transmission
-
After the entire TV signal is denoised and enhanced by the video processing circuit, it is converted into an optical signal by the wireless video transmitter and transmitted to the receiving end through fiber optic or wireless channels to ensure real-time and low latency images.
Network video output and remote monitoring
The optical signal is compressed into a digital signal by a network video encoder and output to the monitoring system through wiring terminals. It supports remote real-time viewing and storage, achieving visual monitoring of the underground environment.
Structural Composition

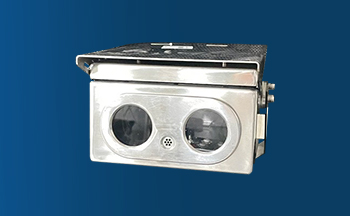

housing
Made of 304 stainless steel; Ability to resist corrosion, explosion, rust, and impact.
CCD device
High sensitivity, strong light resistance, anti-interference, and low distortion; Small size, long lifespan, and vibration resistance.
wireless transmitter
Wireless video transmitter with strong adaptability; Long transmission distance, modular design.
lens
Optical lens, explosion-proof glass.
Project Case
Guonuo weighing equipment has been successfully applied to multiple domestic and foreign enterprises and has gained widespread recognition
Shanxi Honghaifu Mining Equipment Explosion-Proof Belt Scale Project
Based on the site conditions, an ICS-17A belt scale frame was configured, which is a four-idler double-lever type frame with high stability. The sensors are built-in and less prone to damage, effectively mitigating the impact of belt misalig
Fengning Jianyu Iron Mine ICS-17A Belt Weigher Project
The ICS-17A belt weigher adopts a four-idler double-lever scale frame, ensuring high stability and good resistance to eccentric loading.
Shanxi Honghaifu Mining Equipment Explosion-Proof Belt Weigher Project
The measurement accuracy of the explosion-proof belt weigher met production requirements, and data could be viewed remotely. Production reports facilitated statistical analysis and management.
Hubei Jingshan Chutian Barium Salt Feeder Project
The feeder's metering and feeding accuracy fully met production requirements and remained stable during prolonged continuous production.

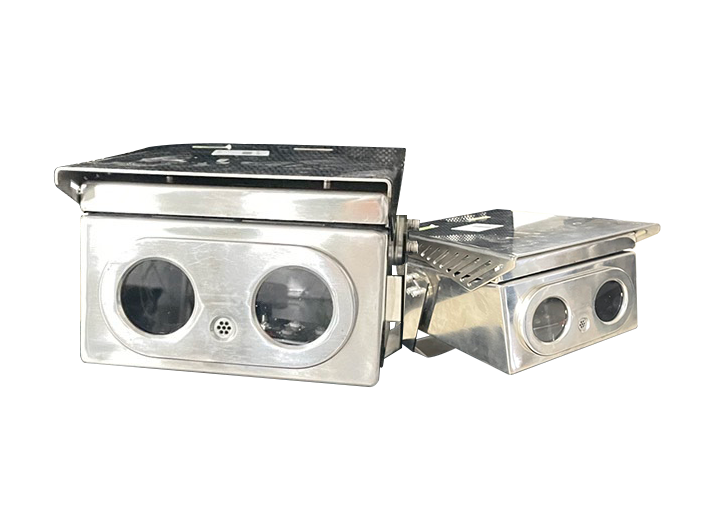

Production Process
Guonuo Technology adopts internationally leading production processes and equipment to ensure stable and reliable quality
Low light high-definition imaging
By using high-sensitivity CCD/CMOS sensors and low light image enhancement technology, monitoring images with a resolution of ≥ 400 lines and a grayscale of ≥ 7 levels can still be output under ≤ 0.05lx illumination, ensuring the imaging quality of underground low light environments.
Intelligent visual recognition
Integrated AI algorithm chip, supporting face detection, recognition and capture, combined with scene recognition technology, to automatically trigger capture and alarm when personnel enter the monitoring range, improving the efficiency of security monitoring.
Dual mode high-speed transmission
Equipped with a built-in video encoder, it converts real-time images into Ethernet optical/electrical signals and supports gigabit (1000Mbps) full duplex transmission. The optical port uses single-mode fiber (transmission distance ≥ 10km), and the electrical port is compatible with RJ45 to ensure efficient and stable data transmission.
Intelligent alarm linkage
By using the tripwire intrusion detection algorithm to accurately identify personnel's cross-border behavior, the sound and light alarm device (≥ 85dB loudness+high brightness warning light) is triggered, and video capture and data transmission are linked to achieve fast response and evidence retention.
