Project Background:

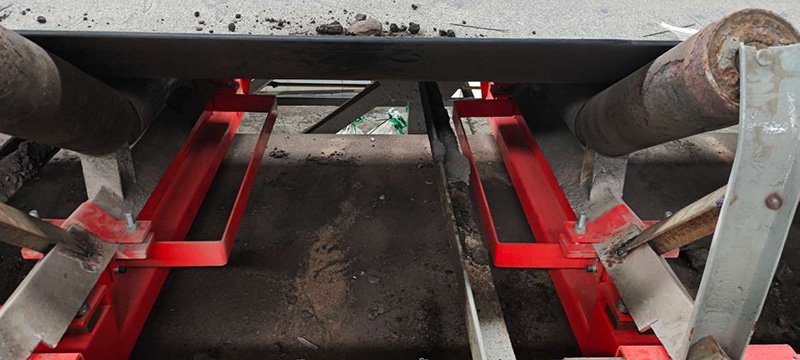

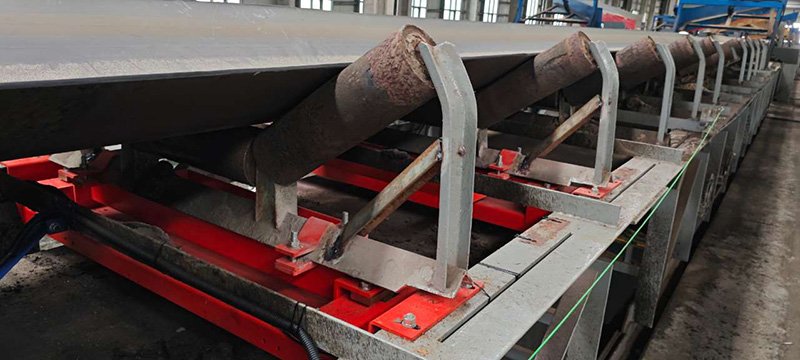

Xiamen Wanxiangtong Industrial is a company primarily engaged in the manufacturing of non-metallic mineral products. Its sand and gravel plant required the installation of belt scales on its sand conveyor lines to complete weighing and measurement tasks, providing real-time data for production and raw material consumption statistics. Given the limited space for installing belt scales on the on-site conveyors, a high dust environment, and stringent accuracy requirements, a product solution consisting of two sets of weighing idlers with a suspended structure belt scale, equipped with four high-precision load cells, was formulated for the company.
Construction Overview:

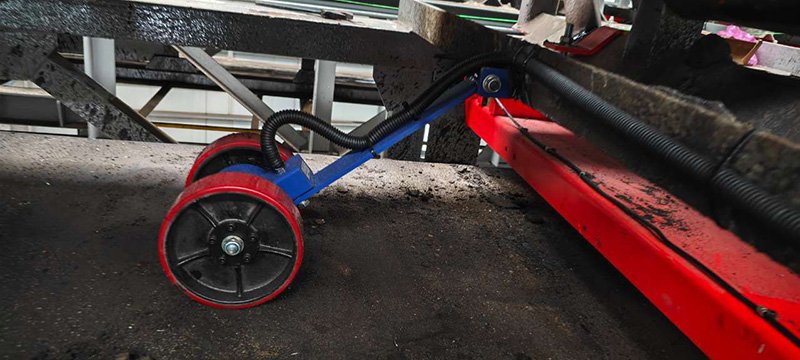

The after-sales engineer communicated with the customer's on-site supervisor in advance to arrange the installation time. Due to on-site conditions, the installation plan was adjusted to utilize downtime for installation. Open flames were not allowed on-site, so cutting and other work were completed in the factory area before installation on-site. After the installation of the belt scales at the sand and gravel plant, belt misalignment was observed and subsequently corrected. After power-on, the belt scale parameters were reset and calibrated. Once the results were confirmed as qualified, on-site personnel were trained in instrument operation, software introduction, parameter setting, and calibration.
Subsequent Feedback:
The weighing results of the belt scales at the sand and gravel plant met production requirements, with simple and clear data statistics that could be queried and exported. Instrument operation was also straightforward, enabling on-site personnel to quickly master it.
