ICS-ST-17A Explosion-proof Electronic Belt Scale for Mining

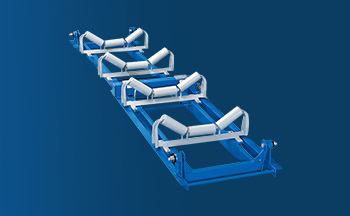

The ICS-ST-17A mining explosion-proof electronic belt scale is a four roller, double bar mining explosion-proof electronic belt scale
Product Overview
The ICS-ST-17A mining explosion-proof electronic belt scale is a four-roll, double-lever type mining explosion-proof electronic belt scale. It utilizes two tension-type load cells and features friction-free pivot supports on the outer side, effectively mitigating the impact of uneven loading and incline on accuracy, while offering enhanced environmental adaptability. It is suitable for hazardous environments in coal mines where explosive gases, dust, and other high-risk conditions require stringent explosion-proof requirements.
High precision
Four rollers, double bar structure, two pull sensors, double bar pivot point, small horizontal force, relatively high measurement accuracy.
Stable operation
The weighing area is long, with strong filtering ability and greater stability. Explosion proof intrinsic safety type, maintaining stability in explosive hazardous environments.
powerful
Real time production monitoring, report generation, precise shift settlement, cost accounting, automatic alarm, helping enterprises reduce staff and improve efficiency.

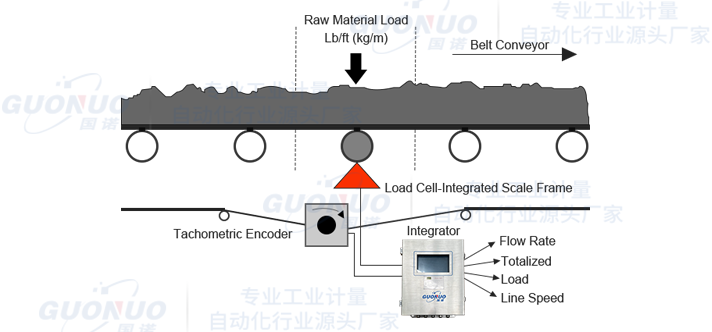

Working Principle
Generate signals

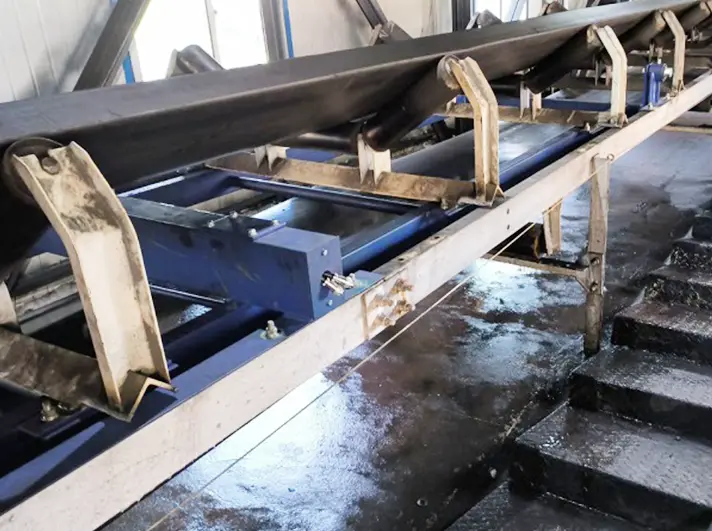

The weighing bridge is installed on the conveyor frame. When the material passes by, the measuring roller detects the weight of the material on the belt conveyor and acts on the weighing sensor through a lever, generating a voltage signal proportional to the belt load.
Speed calculation
-
The speed sensor is directly connected to the large-diameter speed measuring drum, providing a series of pulses, each pulse representing a belt movement unit, and the frequency of the pulses is proportional to the belt speed.
Calculation result

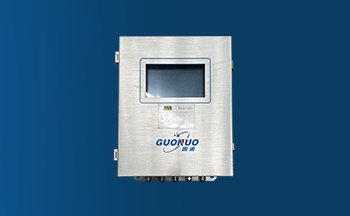

The weighing instrument receives signals from the weighing sensor and speed sensor, integrates them to obtain an instantaneous flow rate value and an accumulated weight value, and displays them separately.
Structural Composition
