In the core field of continuous bulk material measurement, electronic belt scales have long played a crucial role. However, the limitations of traditional instruments have acted as invisible bottlenecks: relying solely on single-point load cells or speed sensors is prone to distortion. Zero drift is as elusive as an undercurrent, belt tension fluctuations resemble irregular pulses, and uneven material distribution is akin to a shifting mist. With these factors intertwined, breaking through the 0.5% accuracy threshold seems unattainable, leaving users' desire for reliable data perpetually unfulfilled.
Today, the advent of multi-channel, intelligent multi-source data fusion instruments, which integrate cutting-edge sensing technologies and intelligent algorithms, has brought about a revolutionary breakthrough in the accuracy bottleneck of belt scales.

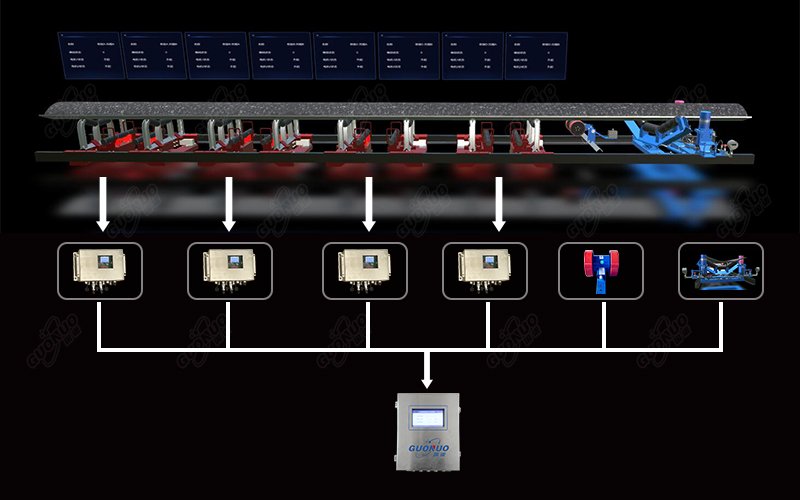

The core of this new type of instrument lies in its multi-channel sensing architecture:
- Multi-load Cell Fusion: The instrument can simultaneously connect to multiple high-precision load cells (such as strain gauge sensors), collecting real-time multi-point load information distributed across the belt scale's idler set, forming a "surface" rather than a "point" load perception.
- In-depth Speed Signal Analysis: Integrated with high-resolution pulse encoders, it accurately captures the true instantaneous speed of the belt, completely eliminating the lag issues associated with traditional speed measurement methods.
- Intelligent Environmental Parameter Compensation: Built-in temperature and humidity sensors keenly perceive environmental impacts and instantly correct sensor output deviations.
- Auxiliary Status Diagnosis: Optional vibration and inclination sensors actively capture potential anomalies such as loose installations or structural deformations, ensuring the healthy operation of the system.
Collecting multi-source data is just the starting point; the intelligent fusion engine is the key driving force behind the instrument's accuracy leap:
- Data Regularization and Synchronization: Utilizing high-speed, high-precision AD conversion and timestamp marking technologies, it ensures that data from each channel arrives at the processing core synchronously under a strict time reference.
- Feature Extraction and Modeling: Preprocessing raw signals through noise reduction and filtering; extracting key feature values (such as load mean) to construct a dynamic load model for the belt scale.
- Advanced Fusion Algorithms: The core engine employs advanced algorithms such as adaptive weighted fusion and Kalman filtering to dynamically assign optimal weights to sensor data based on physical models and real-time operating conditions, accurately reconstructing the true instantaneous material flow rate.
- Dynamic Compensation and Calibration: The algorithm identifies interference such as belt tension variations, misalignment, and temperature drift in real-time, actively applying compensation values to significantly reduce their impact on measurement accuracy.
- Self-learning and Evolution: More advanced and intelligent instruments possess historical data learning capabilities, continuously optimizing fusion model parameters. Over time, their accuracy becomes more stable and reliable.

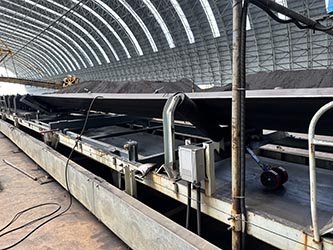

Numerous practices by Guonuo Technology have validated the value of multi-source data fusion instruments: For instance, in a project at a large coal washing plant, multiple belt scale systems equipped with such fusion instruments were deployed. Actual measurements demonstrated a significant improvement in long-term operational stability under various complex operating conditions, with accuracy metrics consistently reaching and surpassing 0.2%, far exceeding industry norms. The instrument's powerful diagnostic capabilities also successfully warning several potential mechanical failures, enhancing both the accuracy of belt scale applications and simplifying maintenance operations.
The multi-channel, intelligent multi-source data fusion instrument not only represents a powerful breakthrough in the accuracy bottleneck of traditional belt scales but also marks a crucial step towards intelligent upgrading in the industrial measurement field. It transforms passive measurement into active perception and dynamic correction, elevating data silos into collaborative intelligence. As Industry 4.0 advances deeper, such instruments, as vital nodes in the perception layer of smart factories, will continue to drive bulk material logistics measurement towards higher precision, greater resilience, and deeper intelligence, laying a solid data foundation for refined industrial management and decision-making optimization.
