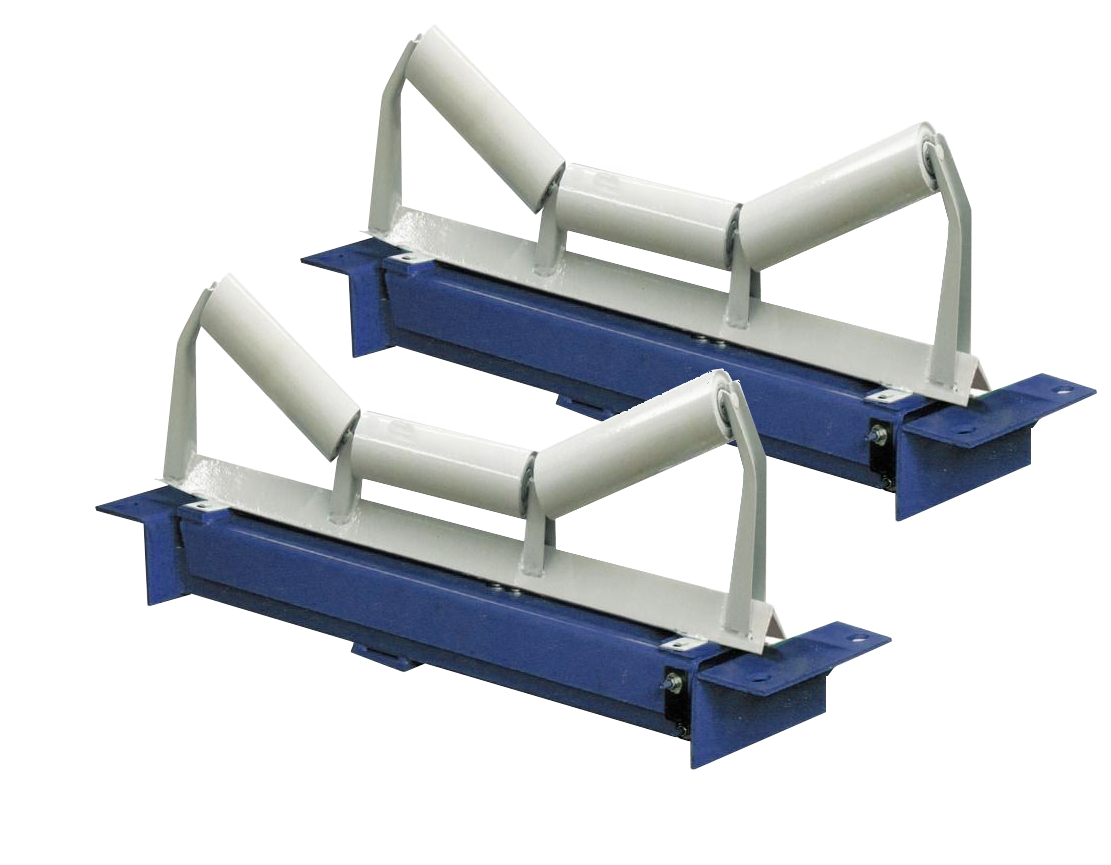

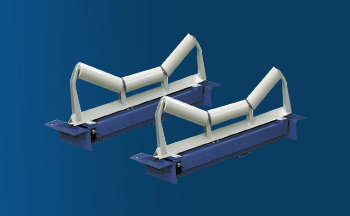

ICS-30-2T-4C electronic belt scale
The structure of the ICS-30-2T-4C belt scale is similar to that of the ICS-14 model
Product Overview
The structure of the ICS-30-2T-4C belt scale is similar to that of the ICS-14 model, but it has a wider range of use than the scale frame of the ICS-14 model, especially suitable for conveyor frames with larger inclination angles. The measurement accuracy can achieve the same effect as the ICS-14 model without the limitation of inclination angles.
High precision
Resist lateral and horizontal forces, effectively reducing the impact of belt scale deviation and material dropping deviation on accuracy.
Stable operation
Unique rectangular lever structure, with good rigidity and invisible deformation. Easy to adjust, flexible, reliable, and highly accurate.
Low maintenance
The structure of the scale frame is simple and exquisite, with easy and convenient installation and debugging. It requires less maintenance in the later stage and has low maintenance costs.
Working Principle
Generate signals
The weighing bridge is installed on the conveyor frame. When the material passes by, the measuring roller detects the weight of the material on the belt conveyor and acts on the weighing sensor through a lever, generating a voltage signal proportional to the belt load.
Speed calculation
-
The speed sensor is directly connected to the large-diameter speed measuring drum, providing a series of pulses, each pulse representing a belt movement unit, and the frequency of the pulses is proportional to the belt speed.
Calculation result
The weighing instrument receives signals from the weighing sensor and speed sensor, integrates them to obtain an instantaneous flow rate value and an accumulated weight value, and displays them separately.
Structural Composition
