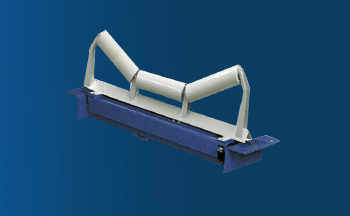

ICS-30 electronic belt scale
The ICS-30 electronic belt scale is a single roller, fully suspended structure electronic belt scale
Product Overview
The ICS-30 electronic belt scale is a single roller, fully suspended structure electronic belt scale with a simple frame structure, light weight, strong environmental adaptability, simple and fast installation, and an accuracy of up to ± 1%. It can provide instantaneous flow and accumulation for process control and production monitoring of products.
High precision
Resist lateral and horizontal forces, effectively reducing the impact of belt scale deviation and material dropping deviation on accuracy.
Stable operation
Unique rectangular lever structure, with good rigidity and invisible deformation. Easy to adjust, flexible, reliable, and highly accurate.
Low maintenance
The structure of the scale frame is simple and exquisite, with easy and convenient installation and debugging. It requires less maintenance in the later stage and has low maintenance costs.
Working Principle
Generate signals
The weighing bridge is installed on the conveyor frame. When the material passes by, the measuring roller detects the weight of the material on the belt conveyor and acts on the weighing sensor through a lever, generating a voltage signal proportional to the belt load.
Speed calculation
-
The speed sensor is directly connected to the large-diameter speed measuring drum, providing a series of pulses, each pulse representing a belt movement unit, and the frequency of the pulses is proportional to the belt speed.
Calculation result
The weighing instrument receives signals from the weighing sensor and speed sensor, integrates them to obtain an instantaneous flow rate value and an accumulated weight value, and displays them separately.
Structural Composition
Do you need to know more product information?
Our professional team will provide you with customized solutions to meet your specific needs.
Project Case
Guonuo weighing equipment has been successfully applied to multiple domestic and foreign enterprises and has gained widespread recognition
Electronic Belt Weigher Project Case in the New Building Materials Industry
The matrix-type electronic belt weigher can accommodate conveyor belts with larger inclination angles, achieving high precision requirements.
Guonuo Technology Fully Suspended Electronic Belt Weigher Project Case in Building Materials Enterprise
The frame of the ICS-14A electronic belt weigher is a suspended type, offering high stability and low maintenance requirements. The sensors are built-in and less prone to damage.
Electronic Belt Scale (Including Hidden Chain Code) Case Study in Magnesium Industry Project
Both belt scales have met the precision requirements and have maintained a stable level after a period of application. The calibration operation with the hidden chain code is also simple and convenient.
Double-Lever Belt Scale Project Case in the Energy Industry
The belt scale manufacturer has extensive experience in similar cases at thermal power plants and offers comprehensive after-sales service, providing significant advantages.
Why Choose Us？
Guonuo Technology adopts internationally leading production processes and equipment to ensure stable and reliable quality
Customized solutions, reliable and practical
We provide electronic belt scales, feeders, and systems specifically designed for industrial environments. These products are sturdy, durable, wear-resistant, impact-resistant, and have a high level of protection, ensuring long-lasting, low-maintenance operation in harsh environments.We provide electronic belt scales, feeders, and systems specifically designed for industrial environments. These products are sturdy, durable, wear-resistant, impact-resistant, and have a high level of protection, ensuring long-lasting, low-maintenance operation in harsh environments.
Precise intelligence, stable and efficient
Master core metrology technologies (such as AI weighing management and signal processing algorithms) to achieve high-precision and long-term stable weighing. The intelligent integrated system supports remote monitoring, automatic batching, and data analysis, facilitating lean production and efficiency improvement.
Full response, professional guarantee
We provide comprehensive services covering pre-sales consultation, scheme design, installation and debugging, maintenance, and spare parts supply. Our localized and responsive technical support team, with rich experience, ensures efficient operation of the equipment 24/7, maximizing your investment value.
Strive for excellence, quality certification
We implement a strict quality management system, selecting superior materials and craftsmanship for core components, and conduct multiple quality inspections. Our products comply with relevant international/national standards and industry norms, providing reliable and stable quality assurance.
Recommended Similar Products
Explore other high-quality products from Guonuo Technology to meet your diverse needs
Single tube spiral measuring scale
The single tube spiral weighing feeder is an automated industrial equipment that performs real-time control and dynamic measurement of various powdered materials.
Double tube spiral feeder
The double tube spiral weighing feeder is also a dynamic measuring instrument suitable for conveying powdered, granular or small materials
Quantitative weighing feeder
Guonuo Quantitative Weighing Feeder is an automated measuring equipment designed for continuous weighing of bulk materials
Our process
Guonuo Technology integrates the concept of sustainable development into the weighing industry, committed to balancing resource development and environmental protection
Pre-sales consultation
- Gain a deep understanding of your industry, materials, and process requirements.
- Provide precise matching suggestions for the selection of products.
- ● Share technical parameter comparisons and successful cases to assist you in making informed decisions.
Design proposal
- Based on the consultation results, the engineer team customizes an optimization plan.
- Integrate core technology with modular design (such as high-precision support structures, sealed sensors).
- Clarify specifications, technical parameters, and installation requirements.
Installation and debugging
- Professional technicians provide on-site guidance for installation to ensure standardized operations.
- Conduct rigorous no-load and load tests to verify accuracy and operational stability.
- Conduct on-site optimization and adjustment to ensure that the equipment meets production requirements.
