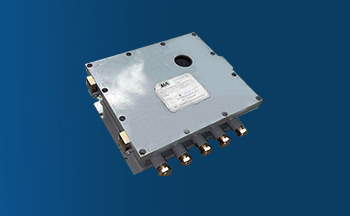

KJF227 Mining Explosion proof and Intrinsic Safety Power Car
KJF227 mining explosion-proof and intrinsic safety power carrier acquisition substation with data processing function
Product Overview
KJF227 mining explosion-proof and intrinsic safety power carrier acquisition substation has data processing function, mainly used for comprehensive protection with underground explosion-proof high and low voltage switch devices and communication with general high-voltage switch comprehensive protection devices for mining, to complete local monitoring of the substation, and to complete data upload and command issuance between comprehensive protection and ground dispatch main station. It is an important equipment in the underground monitoring and control system.
data collection
The substation is mainly used to collect parameters such as current, voltage, and operating status of high and low voltage switchgear, monitor the operating status of the coal mine power grid safety monitoring system in real time, and transmit them to the ground center station to complete local monitoring of the substation.
High communication quality
The substation supports full duplex transmission of Ethernet electrical signals with a transmission rate of 100Mbps; The RS485 signal is a bipolar half duplex transmission with a transmission rate of 9600bps, and the power line carrier communication rate is 2.5kbps
powerful
The substation has the power carrier communication function of transmitting communication signals through power cables; The substation has the function of RS485 signal and Ethernet electrical signal; The substation also has functions such as data processing, bidirectional communication, and indicator lights.
Working Principle
Collection and processing
The communication management module obtains real-time monitoring data (such as gas, temperature, etc.) through a dedicated collection port, preprocesses multiple sensor signals (filtering, amplification, AD conversion), packages them uniformly, and sends them to the communication module.
Dual channel transmission
-
The communication module establishes a connection between the processed data and the ground monitoring center through dual channels (Ethernet signal+RS485). Ethernet enables high-speed data upload, while RS485 serves as a backup link to ensure communication redundancy and reliability.
Monitoring integration
As the on-site execution node of the monitoring and control system, the power substation uploads the collected data in real time to the ground monitoring platform. The system can remotely issue control commands (such as power outages and alarms) to achieve underground equipment linkage and unmanned automated operation.

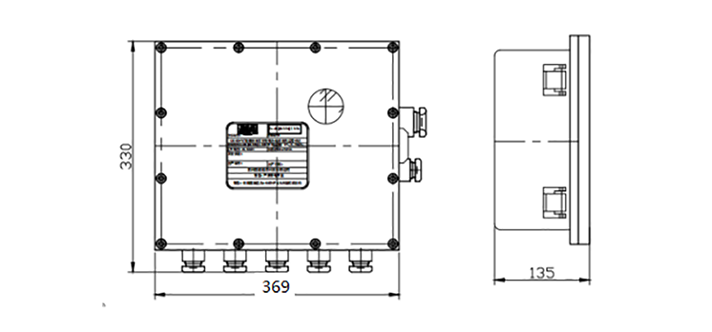

Structural Composition
Project Case
Guonuo weighing equipment has been successfully applied to multiple domestic and foreign enterprises and has gained widespread recognition
Shanxi Honghaifu Mining Equipment Explosion-Proof Belt Scale Project
Based on the site conditions, an ICS-17A belt scale frame was configured, which is a four-idler double-lever type frame with high stability. The sensors are built-in and less prone to damage, effectively mitigating the impact of belt misalig
Fengning Jianyu Iron Mine ICS-17A Belt Weigher Project
The ICS-17A belt weigher adopts a four-idler double-lever scale frame, ensuring high stability and good resistance to eccentric loading.
Shanxi Honghaifu Mining Equipment Explosion-Proof Belt Weigher Project
The measurement accuracy of the explosion-proof belt weigher met production requirements, and data could be viewed remotely. Production reports facilitated statistical analysis and management.
Hubei Jingshan Chutian Barium Salt Feeder Project
The feeder's metering and feeding accuracy fully met production requirements and remained stable during prolonged continuous production.
Production Process
Guonuo Technology adopts internationally leading production processes and equipment to ensure stable and reliable quality

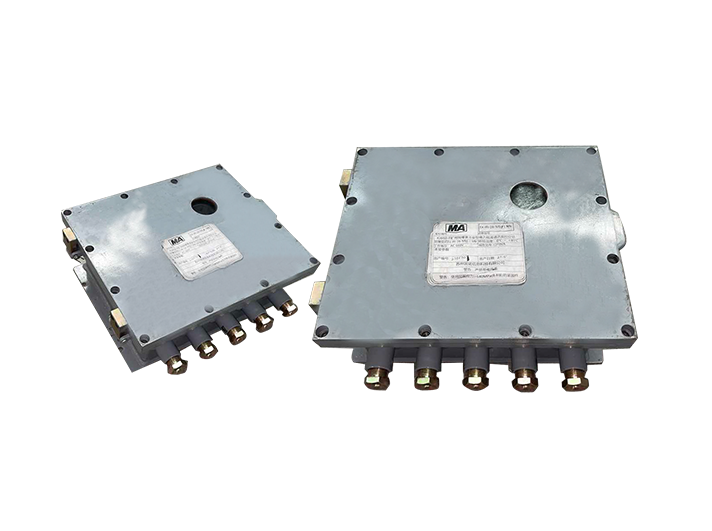

shell
304 stainless steel shell, rust and corrosion resistant. Durable, strong, and resistant to high temperatures.
communication module
Ethernet electrical signal and RS485 communication. Real time and efficient data collection and transmission.
Communication management module
The communication management machine collects monitoring data from the port, Mainly responsible for completing the work of the monitoring and surveillance system.
power supply
Small size, light weight, explosion-proof and safe. Wide voltage range input, continuous, stable and reliable power supply.
