FSD high-precision electronic belt scale
The FSD series is a high-precision belt scale that can be freely combined and maintained with minimal stability
Product Overview
The FSD series electronic belt scale is a dynamic measurement product composed of advanced microcomputer controlled dynamic weighing instruments. It is an ideal equipment for continuous measurement of bulk materials in belt conveyor systems. The overall design is reasonable and compact, with complete weighing and control mathematical models, and multiple input and output signal forms. It has a simple structure, accurate weighing, stable operation, reliable operation, convenient operation, and low maintenance. It is not only suitable for conventional environments, but also for acid, alkali, salt, and atmospheric corrosive environments. Widely used in metallurgy, power, mining, ports, chemical industry, cement, building materials, grain and other industries.
High precision
The weighing structure and components have broken through the inherent technology, and the actual usage accuracy has exceeded 0.2%, far higher than the market average level, and can be maintained for a long time. Adapt to various on-site uses, especially in trade situations that require precise settlement.
Stable operation
Selected materials and precision components, produced with lean technology, using a direct load-bearing scale frame, no lever pivot, no movable parts, and no problems such as pivot wear and rubber aging, ensuring continuous and stable operation.
Low maintenance
Convenient transportation and installation, with minimal maintenance in the later stages; Remote monitoring, timely troubleshooting, and one click remote operation. The horizontal surface is small, with less dust accumulation, and does not require frequent cleaning. Daily use basically eliminates maintenance troubles.

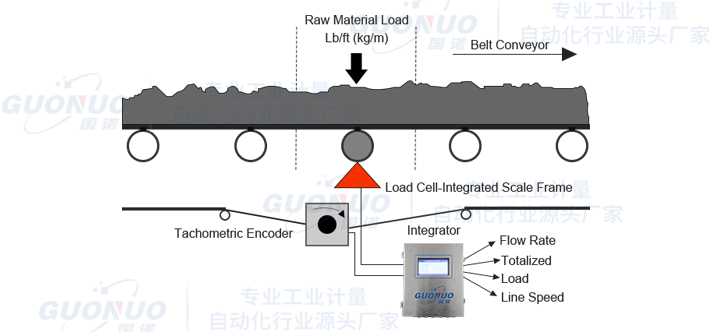

Working Principle
Generate signals
The weighing bridge is installed on the conveyor frame. When the material passes by, the measuring roller detects the weight of the material on the belt conveyor and acts on the weighing sensor through a lever, generating a voltage signal proportional to the belt load.
Speed calculation
-
The speed sensor is directly connected to the large-diameter speed measuring drum, providing a series of pulses, each pulse representing a belt movement unit, and the frequency of the pulses is proportional to the belt speed.
Calculation result
The weighing instrument receives signals from the weighing sensor and speed sensor, integrates them to obtain an instantaneous flow rate value and an accumulated weight value, and displays them separately.
Structural Composition

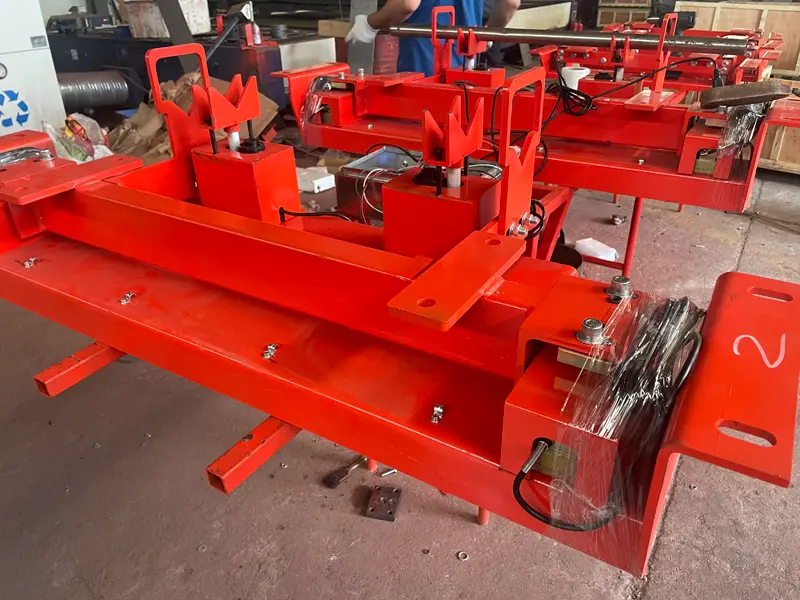

Scale frame
Modular combination technology has fewer transmission links and is easy to install. Unique mechanical structure (with patented technology), no deformation, zero-point stability. The fully suspended structure, without trunnion fulcrums and movable parts, requires minimal maintenance.

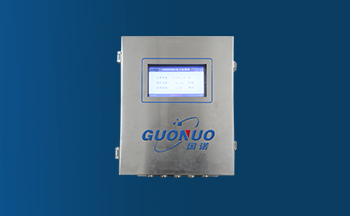

Instrument
Data stored in FLASH memory can be automatically saved in case of power loss, and the system can resume operation with the original data after recovery. The MODBUS communication protocol enables remote parameter inquiry and real-time data communication. Large-capacity storage, with historical production data available for daily/monthly queries.

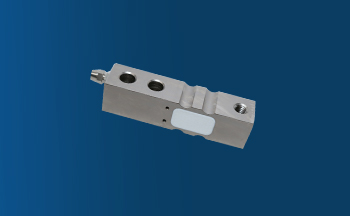

Load cell
Digital sensor (patented technology), with fast anti-interference speed and long distance output signal. Automatic range calibration minimizes errors to the greatest extent possible. IP65 protection level adapts to harsh conditions with limited protection function to prevent overload damage.

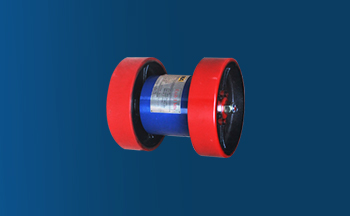

Speed sensor
The dual-speed measurement rubber-coated wheel can eliminate the speed error caused by belt slippage. The brushless DC pulse generator requires no adjustment, calibration, or maintenance. The carbon steel shell has good mechanical strength, shielding, and sealing properties, making it suitable for outdoor installation.
Do you need to know more product information?
Our professional team will provide you with customized solutions to meet your specific needs.
Project Case
Guonuo weighing equipment has been successfully applied to multiple domestic and foreign enterprises and has gained widespread recognition
ICS-17A Double-Lever Belt Scale Feed Mill Project
The ICS-17A belt scale features a four-idler double-lever scale frame with a long weighing area and strong filtering capability, achieving high metrological accuracy and good stability, along with high cost-effectiveness.
Electronic Belt Weigher Project Case in the New Building Materials Industry
The matrix-type electronic belt weigher can accommodate conveyor belts with larger inclination angles, achieving high precision requirements.
Guonuo Technology Fully Suspended Electronic Belt Weigher Project Case in Building Materials Enterprise
The frame of the ICS-14A electronic belt weigher is a suspended type, offering high stability and low maintenance requirements. The sensors are built-in and less prone to damage.
Electronic Belt Scale (Including Hidden Chain Code) Case Study in Magnesium Industry Project
Both belt scales have met the precision requirements and have maintained a stable level after a period of application. The calibration operation with the hidden chain code is also simple and convenient.
Why Choose Us？
Guonuo Technology adopts internationally leading production processes and equipment to ensure stable and reliable quality
Customized solutions, reliable and practical
We provide electronic belt scales, feeders, and systems specifically designed for industrial environments. These products are sturdy, durable, wear-resistant, impact-resistant, and have a high level of protection, ensuring long-lasting, low-maintenance operation in harsh environments.We provide electronic belt scales, feeders, and systems specifically designed for industrial environments. These products are sturdy, durable, wear-resistant, impact-resistant, and have a high level of protection, ensuring long-lasting, low-maintenance operation in harsh environments.
Precise intelligence, stable and efficient
Master core metrology technologies (such as AI weighing management and signal processing algorithms) to achieve high-precision and long-term stable weighing. The intelligent integrated system supports remote monitoring, automatic batching, and data analysis, facilitating lean production and efficiency improvement.
Full response, professional guarantee
We provide comprehensive services covering pre-sales consultation, scheme design, installation and debugging, maintenance, and spare parts supply. Our localized and responsive technical support team, with rich experience, ensures efficient operation of the equipment 24/7, maximizing your investment value.
Strive for excellence, quality certification
We implement a strict quality management system, selecting superior materials and craftsmanship for core components, and conduct multiple quality inspections. Our products comply with relevant international/national standards and industry norms, providing reliable and stable quality assurance.
