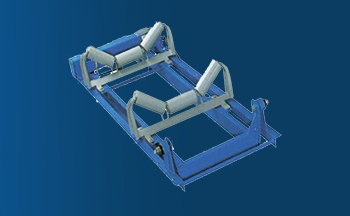

ICS-17B Belt Scale
The ICS-17B belt scale is a dual-roller, single-lever electronic belt scale
Product Overview
The ICS-17B belt scale is a dual-idler, single-lever electronic belt scale featuring four sets of idlers. It employs two tension-type load cells for intermediate support, with frictionless ear support at the outer ends. This design effectively mitigates the impact of misloading on accuracy. The enclosed structure provides protection against vibration, moisture, corrosion, and material buildup, ensuring reliable performance in harsh environments without issues arising from knife-edge or bearing mechanisms.
High precision
The double roller single lever structure has fewer force transmission links and higher accuracy. Four sets of custody reduce the impact of belts on weighing.
Stable operation
Resistant to lateral and horizontal forces, effectively reducing the impact of belt deviation and material dropping offset on system accuracy.
Low maintenance
Carbon steel material does not wear out, rectangular steel structure, does not deform, requires minimal maintenance, and has low maintenance costs.
Working Principle
Generate signals
The weighing bridge is installed on the conveyor frame. When the material passes by, the measuring roller detects the weight of the material on the belt conveyor and acts on the weighing sensor through a lever, generating a voltage signal proportional to the belt load.
Speed calculation
-
The speed sensor is directly connected to the large-diameter speed measuring drum, providing a series of pulses, each pulse representing a belt movement unit, and the frequency of the pulses is proportional to the belt speed.
Calculation result
The weighing instrument receives signals from the weighing sensor and speed sensor, integrates them to obtain an instantaneous flow rate value and an accumulated weight value, and displays them separately.
Structural Composition
