With the advancement of industrialization, especially in mining, chemicals, steel, and other fields, accurate material measurement has become increasingly important. As a key device for material flow metering, electronic belt scales are widely used in material transportation and distribution. However, traditional belt scales often suffer from unstable accuracy and susceptibility to environmental interference, making it difficult to meet the demands of modern industry for precision and efficiency.
To overcome these challenges, Guonuo Technology has launched an intelligent AI high-precision electronic belt scale, integrating AI vision recognition, dynamic compensation algorithms, big data, high-precision sensors, and other technologies to achieve a measurement error of ≤0.25%, creating a new paradigm for belt scale metering.
AI Vision and Video Analysis: Accurate Perception in Dynamic Conditions
Traditional belt scales are prone to interference from uneven material distribution, belt misalignment, etc., under complex operating conditions, leading to large measurement errors and fluctuations.
Guonuo Technology innovatively integrates AI cameras and video analysis to build a “3D spatial perception system”: AI cameras accurately capture material pile shapes, belt edge positions, and other details, assisting the high-precision belt scale metering system to analyze the metering status from multiple dimensions and perform more precise online calibration. Through AI algorithm fusion, measurement deviations caused by uneven material distribution and belt vibration can be corrected in real time.
In a coal mine project in Inner Mongolia, under conditions of a steep belt slope, wide belt width, long conveying distance, and high dust environment, the accuracy was controlled within 0.5%.
Digital Signal Processing: A Revolutionary Breakthrough in Anti‑Interference Capability
Traditional belt scales use analog signal transmission, which is susceptible to electromagnetic interference and data distortion. Guonuo Technology adopts a fully digital architecture, converting load and speed signals into digital pulses and transmitting them via optical fiber to an intelligent data processing center. Equipped with a high‑performance chip, this center performs real‑time filtering calculations, effectively eliminating interference factors such as belt tension fluctuations and motor vibration.
In an application at a steel plant, the digital system successfully resisted strong electromagnetic interference in the steelmaking workshop, achieving continuous 72‑hour stable operation with a measurement error ≤0.2% in an iron ore concentrate conveying scenario (200 t/h), improving accuracy by three times compared to analog signal equipment.
Dynamic Compensation Algorithm and Intelligent Correction: Solving the Industry “Belt Effect” Problem
Belt tension changes and uneven loading – the so‑called “belt effect” – are core pain points limiting metering accuracy. Guonuo Technology has developed a dynamic compensation algorithm that collects real‑time parameters such as belt speed and tension, builds a data model to compensate for errors caused by belt tension changes in real time. At the same time, the weighing units can offset stress changes due to belt tension. The hydraulic neural correction system intelligently corrects belt uneven loading, providing a favorable environment for accurate metering.
Online Calibration System: Intelligent Guardian of Production Continuity
Traditional belt scales require periodic shutdown for calibration, which is time‑consuming and labor‑intensive. Guonuo Technology’s online calibration system compares standard weight data with measurement results in real time, and two weighing units calibrate each other – parameter correction is completed without interrupting production. Real‑time online calibration not only solves the problems of heavy manual workload and long calibration time but also maintains production continuity.
Data Visualization and Remote Operation & Maintenance: A Leap in Management Efficiency

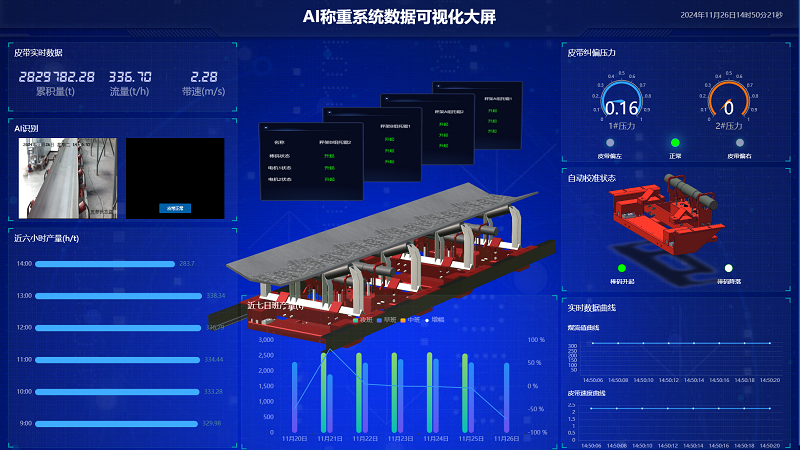

Guonuo Technology’s supporting intelligent management platform integrates a data visualization dashboard and a remote diagnostic system, displaying parameters such as material flow, belt status, and equipment health in real time. The system presents the belt scale and material flow status in a 3D model, automatically generating decision‑support information such as shift production reports and equipment maintenance alerts.
The breakthrough of Guonuo Technology’s intelligent AI high‑precision electronic belt scale lies not only in its 0.25% measurement accuracy but also in the closed‑loop system it builds: “perception – calculation – decision – execution”. When AI algorithms can predict belt failures, when online calibration becomes a natural extension of production processes, and when data visualization drives management decisions, the belt scale evolves from a simple metering tool into the intelligent brain of industrial production.
