Adopting deep integration of dynamic multi-point metering hardware architecture and AI self-calibration intelligent algorithm, Guonuo Technology High-Stability Intelligent Control Matrix Electronic Belt Scale achieves a dynamic metering error of ≤ 0.25%, providing a brand-new solution of high precision, high stability and maintenance-free for industrial bulk material metering.
I. Dynamic Multi-Point Metering: From Single-Point Sensing to Matrix Accurate Capture

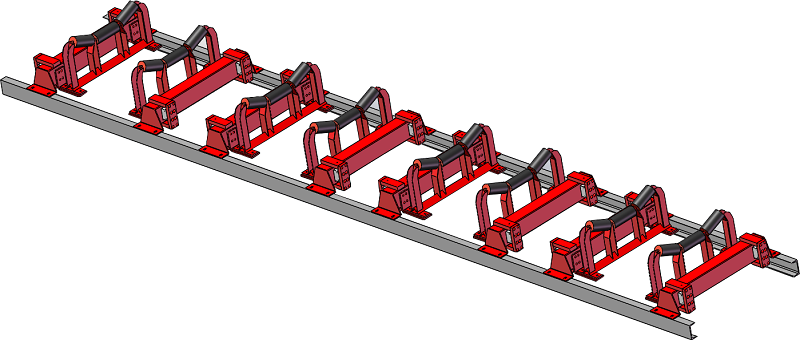

Most traditional belt scales adopt single-point or dual-point sensor layout, which can only collect local load signals and hardly cope with working conditions such as uneven material distribution and belt deviation, resulting in metering deviation. Breaking through the traditional design, Guonuo intelligent control matrix electronic belt scale adopts a distributed multi-point sensing matrix structure. Multiple sets of high-precision digital weighing units are densely arranged longitudinally and transversely along the belt in the weighing section, forming a sensing network covering the entire metering area.
- Distributed Sensing Network: The matrix layout consists of 4 to 8 sets of high-precision weighing sensors, which synchronously collect load data of each area on the belt cross-section. Multi-dimensional data fusion eliminates local stress errors caused by material eccentric load, belt vibration and tension change.
- Full-Floating Matrix Scale Frame: Abandoning the traditional lever structure, it adopts a full-floating design with trunnion-free support and frictionless transmission, completely eliminating mechanical wear and pivot interference. The self-weight of the scale frame is reduced by 20%, zero-point stability is increased by 3 times, and the long-term operation error fluctuation rate is lower than 0.05%.
- Anti-Interference Hardware Upgrade: Sensors feature IP65 sealing protection, adapting to harsh environments with wide temperature range and heavy dust. Digital processing technology is applied to ensure strong anti-electromagnetic interference capability.
II. AI Self-Calibration: From Manual Calibration to Intelligent Closed-Loop Optimization
Traditional belt scales require regular manual chain weight and hanging weight calibration, which is time-consuming and labor-intensive, and accuracy drift tends to occur during calibration intervals. Equipped with an intelligent on-line self-calibration system, Guonuo intelligent control matrix electronic belt scale realizes integrated intelligent management of real-time on-line calibration, dynamic error compensation and predictive maintenance.

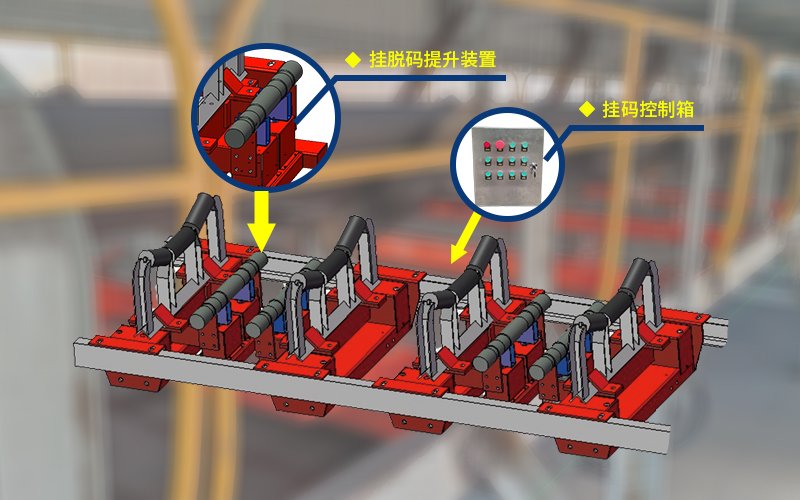

- AI Dynamic On-Line Calibration: The scale frame is integrated with standard weight bars and built-in edge computing core. The AI algorithm trained with massive working condition data analyzes operating parameters and metering results in real time, automatically identifies error patterns and makes dynamic corrections to complete real-time accuracy calibration without shutdown.
- Automatic Tracking: Independent AD detection is performed for each sensor channel to eliminate out-of-tolerance data in real time and automatically track and verify metering accuracy. The system automatically excludes data from faulty sensors once abnormalities occur.
- Predictive Intelligent Operation & Maintenance: The AI model real-timely monitors sensor signals, equipment vibration, load curves and other data to give early warning of faults such as sensor abnormality, idler wear and belt slipping. It transforms passive repair into active maintenance, greatly reducing shutdown risks and maintenance costs.
- With core advantages of high precision, high stability and intelligence (physical verification error ≤ ±0.25%, stable operation cycle over 180 days), Guonuo intelligent control matrix electronic belt scale has been widely used in coal, steel, electric power, cement, chemical industry, ports and other fields:
- Coal Industry: Provides accurate data for coal mine output monitoring, cost accounting and underground transportation metering, reducing manual inventory checking error by more than 80%.
- Steel & Electric Power Industry: Applied to raw material conveying and fuel blending metering, it precisely controls material proportioning, improves combustion efficiency and reduces pollutant emissions.
- Cement & Chemical Industry: Realizes continuous and accurate metering of bulk materials, ensures stable production processes, and optimizes inventory management and cost control.
- Through three major innovations of hardware systematization, algorithm intelligence and calibration closed-loop, the High-Stability Intelligent Control Matrix Electronic Belt Scale raises dynamic metering accuracy to ≤ 0.25% with long-term stable operation. It requires no frequent calibration, maintenance and routine inspection, helping enterprises achieve accurate metering, intelligent management, cost reduction and efficiency improvement.
