On the conveyor lines of modern large-scale mines, ports, and steel smelting enterprises, a large amount of iron ore is transported on high-speed belt conveyors. The flow of materials at hundreds or even thousands of tons per hour is not only a symbol of production efficiency, but also poses almost stringent requirements for measurement accuracy.
Traditional metering equipment often struggles in such high-intensity, high-wear, and strong vibration environments, resulting in significant measurement deviations and frequent maintenance, which are pain points that hinder production efficiency and cost control.

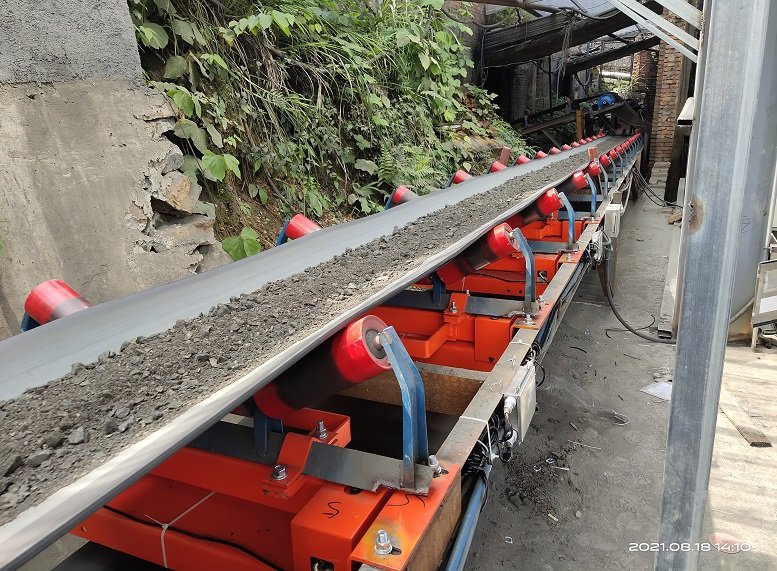

Guonuo Technology's FSD high-precision electronic belt scale is an intelligent solution that emerged against this backdrop, specifically designed to conquer the challenges of measuring high-flow iron ore conveyance.
The core of the FSD electronic belt scale lies in the combination of its innovative suspended scale frame structure and high-sensitivity strain gauge weighing sensor. When the belt carrying heavy iron ore passes through the carefully designed weighing area:
1. Suspended scale frame design: The unique combined suspension structure effectively isolates the interference from the vibration and impact of the conveyor frame on the measurement core. The combined weighing unit effectively offsets the changes in belt tension, providing an extremely stable working environment for the sensor - this is the fundamental physical guarantee for achieving high precision under harsh working conditions.
2. Multi-group high-precision sensor collaboration: High-precision strain gauge weighing sensors distributed on both sides of the scale frame capture in real-time the slight pressure changes generated when materials pass on the belt. Multi-point measurement greatly eliminates local errors caused by belt deviation and uneven tension.
3. Precise speed measurement and real-time integration: The high-resolution speed sensor for digital signals continuously and accurately monitors the belt running speed. The core processor receives weight signals and speed signals from the sensor in real time, and instantly calculates the instantaneous flow rate and cumulative weight of the material through integration operations.
4. Dual anti-interference barriers: The signal processing module incorporates advanced filtering algorithms to effectively eliminate clutter and noise generated by on-site motor start-stop, frequency conversion interference, mechanical vibration, etc. The dedicated signal transmission cables with multiple shielding designs have built a solid defense line for data transmission.
The value of the FSD electronic belt scale is fully demonstrated in its excellent ability to solve the pain points of iron ore conveying and metering:
Overcoming harsh environments: In response to the common environmental challenges such as strong vibration, shock, high dust, and high humidity present at iron ore conveying sites, the scale frame adopts a heavy-duty structure with excellent shock resistance. Both the sensor and electronic unit achieve high-level protection of IP65, ensuring stable operation under the "torture" of the mine.
l Fearless against high flow impact: The optimized scale frame structure can adapt to high flow impacts, and the sensor overload protection can accommodate a minimum 20% increase in normal flow range. In the case of flow fluctuations, the measurement accuracy remains rock-solid, meeting high-demand scenarios such as trade settlement and iron ore production supervision.
l Reduce the impact of belt deviation: The innovative longitudinal anti-deviation design significantly reduces the interference of lateral belt displacement on measurement results, ensuring that the material weight is accurately applied to the center of the weighing area.
l Reduced maintenance costs: The robust mechanical structure and modular design of key components make the equipment durable. The extremely small horizontal surface area reduces dust accumulation, eliminating the need for frequent cleaning and significantly reducing maintenance frequency and downtime. The advanced remote diagnostic function enables more efficient fault prediction and handling.
l Intelligent Calibration and Convenient Management: Supporting various methods such as tagging, chain coding, and physical calibration, combined with intelligent self-diagnostic functions, the verification process is more convenient and the results are more reliable. Data can be remotely monitored through various methods such as RS485 and Ethernet, or seamlessly integrated into management systems such as DCS, enabling real-time monitoring, historical traceability, and automatic report generation of metering data.
In the mining and metallurgical sectors, where efficiency, intelligence, and lean production are pursued, precise measurement serves as the cornerstone for production management, cost control, and fair trade. The FSD high-precision electronic belt scale, with its revolutionary suspended structure design, advanced sensing technology, and robust anti-interference capabilities, has successfully overcome the technical bottleneck of online measurement for high-flow iron ore belt conveyors.
