KJJ12W Mining Intrinsic Safety Wireless Gateway
KJJ12W intrinsically safe wireless gateway for mining is used to achieve network interconnection above the network layer in the coal information network
Product Overview
KJJ12W intrinsically safe wireless gateway for mining is used to achieve network interconnection above the network layer in the coal information network, and Ethernet is implemented through circuit board processing RS485、 With CAN signal conversion, multiple interfaces can be used to connect various monitoring system substations and terminals.
safe and reliable
Fully sealed 304 stainless steel explosion-proof shell, observation window made of organic glass, intrinsic safety type, with coal safety certification and explosion-proof qualifications, suitable for harsh working conditions.
Multiple types of interfaces
There are many types and quantities of interfaces that can be easily connected to the existing network of coal mines. There are also many types and quantities of devices that can be connected to meet various on-site needs.
Easy installation and debugging
The gateway is connected to the host through a mining communication cable. Click the host power button, and the gateway will automatically work when powered on, with wireless debugging operations. The main parameters can be directly configured through software.

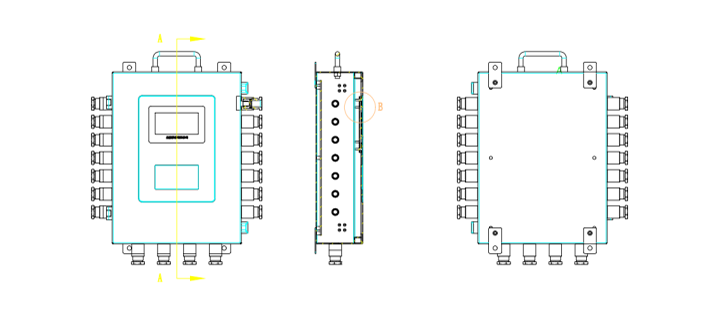

Working Principle
Multi protocol signal access and conversion
The gateway receives different protocol signals through Ethernet, RS485, and CAN interfaces, and processes them internally through the circuit board processing unit for protocol parsing and format conversion.
Intrinsic safety signal processing and forwarding
-
The converted signal is processed by an intrinsic safety circuit (including explosion-proof measures such as current limiting and isolation) and output through wireless modules (such as Wi Fi/4G/5G) or Ethernet to achieve safe communication between underground equipment and surface systems.
Dual mode redundant transmission
Supports wired (Ethernet/RS485/CAN) and wireless dual channel transmission, automatically switches to a backup link when the main link is interrupted, ensuring real-time data transmission; Simultaneously equipped with signal verification and retransmission mechanisms to ensure transmission reliability.
Structural Composition

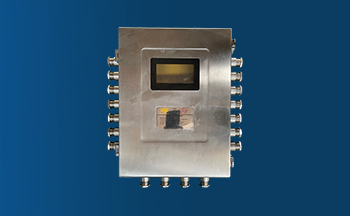

housing
Made of 304 stainless steel; Ability to resist corrosion, explosion, rust, and impact.

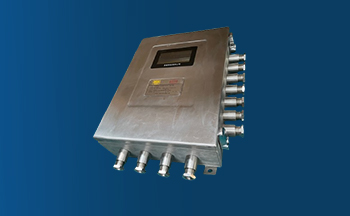

observation window
Made of organic glass; Clear and easy to observe.

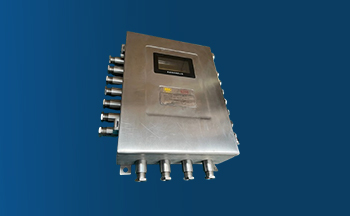

power terminal
There is a fuse inside, which is safe and stable.

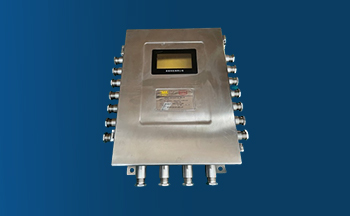

signal terminal
Intrinsic safety type terminal block; There are many types and quantities, making it convenient to access the network.
Project Case
Guonuo weighing equipment has been successfully applied to multiple domestic and foreign enterprises and has gained widespread recognition

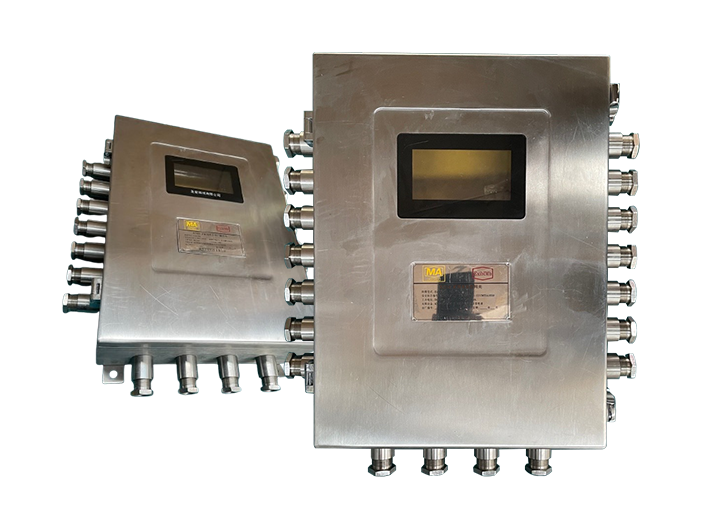

Production Process
Guonuo Technology adopts internationally leading production processes and equipment to ensure stable and reliable quality
Explosion proof sealing structure
Adopting 304 stainless steel fully sealed explosion-proof shell, organic glass observation window, with intrinsic safety design and coal safety certification, it has explosion-proof, anti-corrosion, and impact resistance performance, suitable for harsh environments such as coal mine gas and dust.
Multi interface compatibility extension
It integrates multiple interfaces (such as Ethernet, RS485, CAN, etc.), supports multi device and multi protocol access, and can flexibly adapt to the existing network architecture of coal mines to meet the interconnection needs of devices in complex scenarios.
Quick installation and debugging
Connect directly to the host through a mining communication cable, and it will automatically work when powered on; Support wireless debugging and software parameter configuration, simplify on-site deployment processes, and reduce operational complexity.
Intelligent state monitoring and signal processing
Built in power supply, working and communication status indicator lights, real-time feedback on device operation status; Support CAN/485 signal access and protocol conversion to achieve multi-source data fusion and efficient transmission.
