KJD127 Mining Explosion proof and Intrinsic Safety Integrate
KJD127 mining explosion-proof and intrinsic safety computer is a mining explosion-proof and intrinsic safety equipment
Product Overview
KJD127 mining explosion-proof and intrinsic safety computer is a mining explosion-proof and intrinsic safety equipment, suitable for environments with gas and coal dust explosion hazards. It has functions such as display, communication, and control, and can also serve as an automatic control device for various equipment to meet the different requirements of various users.
Industrial explosion-proof quality
The shell is made of Q235 steel to prevent internal explosions from spreading to the outside; Intrinsic safety power board, isolation circuit board, dual explosion-proof technology.
Long term continuous and stable operation
Industrial grade motherboard with low-power structural design, capable of 365 * 24-hour continuous stable operation, ensuring stable operation in explosion-proof areas.
Better heat dissipation effect
Fanless cooling technology reduces energy consumption, produces no noise, has no cooling holes, prevents dust from entering, and greatly reduces maintenance costs in the later stage.

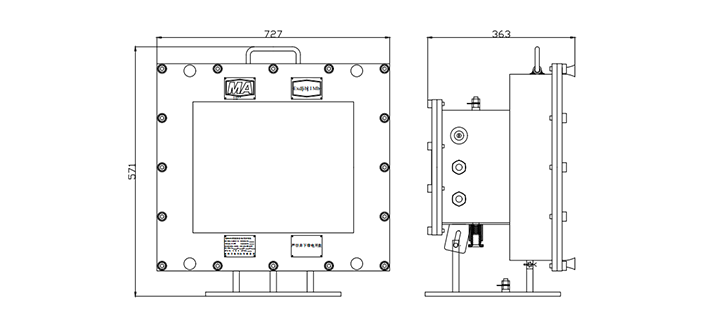

Working Principle
Embedded computer system startup
After the computer is powered on, the intrinsic safety power board supplies power to the CPU and memory. The CPU reads the boot instruction from a specific address in the memory, initializes the system, loads the operating system, and enters the running state after completing the hardware self-test.
CPU instruction execution
-
The CPU reads program instructions from memory through the address bus, decodes them, performs operations or control operations, and writes the results back to the designated area of memory through the data bus, achieving the sequential execution of program logic.
Data interaction and display
The data processed by the CPU is electrically isolated through an isolation circuit board, converted into optical signals through a fiber optic transceiver, and transmitted to a 24 inch LCD screen to drive the display module to display real-time on-site data and operation interface.
Structural Composition

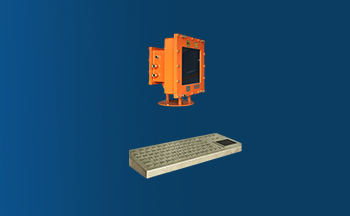

embedded computer
Network communication and browsing, human-machine interface, industrial communication, data collection and control, database storage and query.

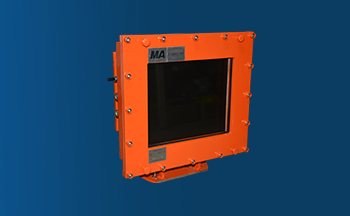

24 inch LCD screen
Implement operational control of the controller, display the controller's parameter status, data list, etc., and achieve human-computer interaction.

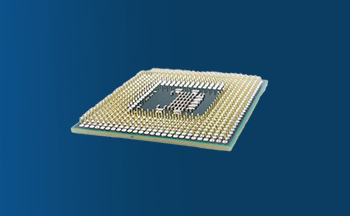

microprocessor
Intel ® Celeron ™ The J1900 quad core 2.0 GHz processor has faster data processing and meets high computational requirements.

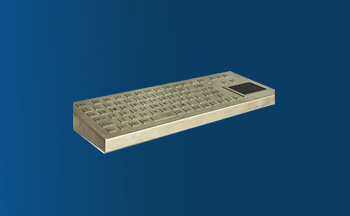

Mining keyboard
Stainless steel casing is safer; Adopting an 83 key design and integrated with a touchpad, it has button and touch operation functions.
Project Case
Guonuo weighing equipment has been successfully applied to multiple domestic and foreign enterprises and has gained widespread recognition
Shanxi Honghaifu Mining Equipment Explosion-Proof Belt Scale Project
Based on the site conditions, an ICS-17A belt scale frame was configured, which is a four-idler double-lever type frame with high stability. The sensors are built-in and less prone to damage, effectively mitigating the impact of belt misalig
Fengning Jianyu Iron Mine ICS-17A Belt Weigher Project
The ICS-17A belt weigher adopts a four-idler double-lever scale frame, ensuring high stability and good resistance to eccentric loading.
Shanxi Honghaifu Mining Equipment Explosion-Proof Belt Weigher Project
The measurement accuracy of the explosion-proof belt weigher met production requirements, and data could be viewed remotely. Production reports facilitated statistical analysis and management.
Hubei Jingshan Chutian Barium Salt Feeder Project
The feeder's metering and feeding accuracy fully met production requirements and remained stable during prolonged continuous production.

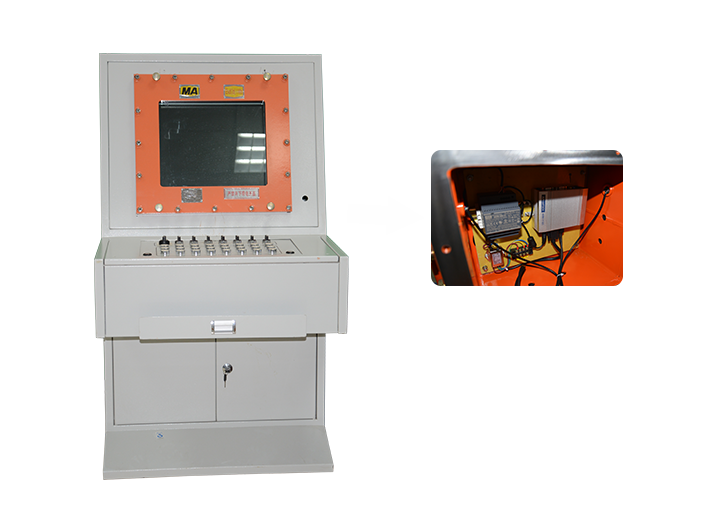

Production Process
Guonuo Technology adopts internationally leading production processes and equipment to ensure stable and reliable quality
Double layer explosion-proof structure
The shell is welded with Q235 steel plate, and the explosion-proof surface is precision machined; Internally integrated intrinsic safety power board and isolation circuit board, with dual explosion-proof design to block the propagation path of explosion, in compliance with coal mine explosion-proof standards.
Industrial grade persistent operation
Adopting industrial grade low-power motherboard, optimizing circuit layout and heat dissipation design, supporting 365 × 24-hour continuous operation; Selection of wide temperature components and design of redundant power supply to ensure stable operation in explosion-proof areas.
Fanless silent cooling
A passive heat dissipation system is constructed using heat sinks and thermal conductive silicone grease, eliminating the need for fans and heat dissipation holes to prevent dust from entering; Combining low-power chip design to achieve long-term stable operation with zero noise and zero maintenance.
Integrated structure
The core components such as the motherboard and display screen are highly integrated into an all-in-one chassis, using a wide voltage input circuit (supporting AC85-265V), paired with a friendly human-machine interface, adapting to voltage fluctuation environments, and simplifying installation and maintenance.
