KBA127 mining flameproof network camera
The flameproof network camera for mining is primarily utilized in underground coal mine video surveillance systems, and can be employed in mines where there is a risk of gas and coal dust explosions.
Product Overview
The flameproof network camera for mining is primarily designed for use in underground coal mine video surveillance systems. It features infrared auxiliary lighting, delivering clear images with a transmission distance of up to 10km. This product is suitable for use in mines where there is a risk of gas and coal dust explosions.
Transmission distance
Equipped with two 100M Ethernet optical signal interfaces, it achieves a maximum transmission distance of 10KM with high transmission quality, effectively solving the problem of transmission distance.
Supplementary lighting
Equipped with an infrared auxiliary light compensation function, it can still present high-quality surveillance footage even under low illumination, adapting to the dim environment of coal mine shafts.
Clear imaging
The captured image boasts a resolution of up to 1920×1080, achieving true 1080P HD quality with a horizontal clarity of up to 400TVL.

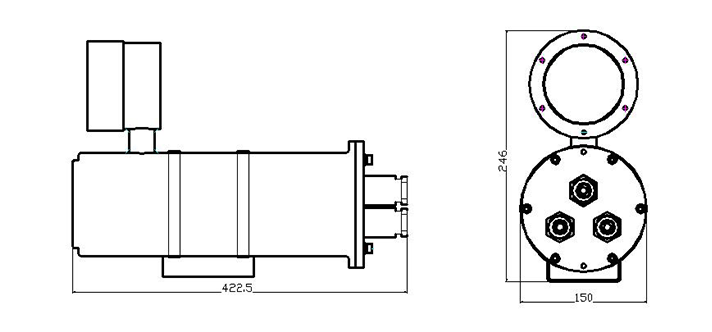

Working Principle
Optical imaging and electrical signal generation
External light enters the lens through the glass window, focuses on the CCD chip, and outputs a full TV signal through photoelectric conversion, completing image acquisition and preliminary electrical signal generation.
Intrinsic safety signal amplification and optical modulation
-
The full TV signal is processed by an amplification circuit and outputs an intrinsically safe network electrical signal. This signal is input to an optical transmitter board for modulation (such as PWM or QAM) and converted into an optical signal, preparing it for fiber-optic transmission.
Low-illumination optical signal output
The modulated optical signal is output through a fiber optic cable via a terminal block. Combined with the high light sensitivity of the CCD chip, it can still form a clear image even at a minimum illumination of 2 Lux, and simultaneously outputs video signals for real-time monitoring.
Structural Composition

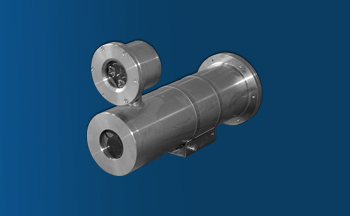

shell
Made of stainless steel according to the American ASTM standard; High temperature resistance, corrosion resistance, explosion-proof, dust-proof, and waterproof; Suitable for all types of explosion-proof environments.

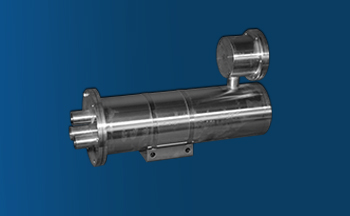

camera
Capable of imaging under an environmental illumination of 2Lux; Image resolution: 1920×1080; Grayscale discrimination level: Level 7. Horizontal resolution: 400TV line.

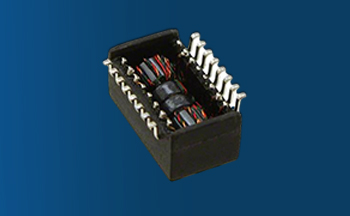

network transformer
Enhancing the signal enables longer image transmission distance; The chip terminal is isolated from the outside, providing anti-interference capability; The protective effect on the chip has been enhanced.

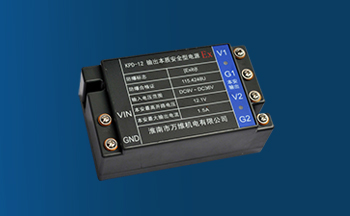

Mine-used power supply
Continuous and stable power supply, with backup power supply; Flameproof and intrinsically safe, dual explosion-proof; Overvoltage, overcurrent, and short circuit protection.
Project Case
Guonuo weighing equipment has been successfully applied to multiple domestic and foreign enterprises and has gained widespread recognition
Shanxi Honghaifu Mining Equipment Explosion-Proof Belt Scale Project
Based on the site conditions, an ICS-17A belt scale frame was configured, which is a four-idler double-lever type frame with high stability. The sensors are built-in and less prone to damage, effectively mitigating the impact of belt misalig
Fengning Jianyu Iron Mine ICS-17A Belt Weigher Project
The ICS-17A belt weigher adopts a four-idler double-lever scale frame, ensuring high stability and good resistance to eccentric loading.
Shanxi Honghaifu Mining Equipment Explosion-Proof Belt Weigher Project
The measurement accuracy of the explosion-proof belt weigher met production requirements, and data could be viewed remotely. Production reports facilitated statistical analysis and management.
Hubei Jingshan Chutian Barium Salt Feeder Project
The feeder's metering and feeding accuracy fully met production requirements and remained stable during prolonged continuous production.

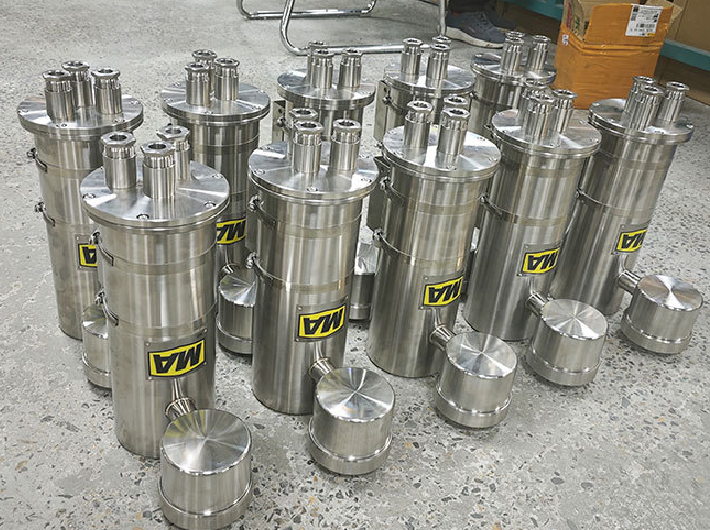

Production Process
Guonuo Technology adopts internationally leading production processes and equipment to ensure stable and reliable quality
Dual optical port long-distance transmission
Equipped with dual 100M Ethernet optical interfaces, it adopts single-mode fiber transmission technology, supports lossless transmission of high-definition video signals over a distance of 10KM, resists electromagnetic interference, and ensures the quality of long-distance communication underground.
Infrared intelligent fill light
Integrating a high-power infrared LED array with a smart light sensor, it automatically triggers light compensation under illumination levels of ≤2Lux. Combined with wide dynamic range image processing technology, it ensures clear imaging in the dim underground environment.
High-definition imaging processing
Equipped with a 2-megapixel high-definition sensor, it supports a resolution output of 1920×1080 with a horizontal clarity of 400TVL. Combined with a 3D noise reduction algorithm, it achieves true 1080P high-definition picture quality.
Pre-installed plug-and-play
Complete software and hardware debugging before leaving the factory, with built-in default settings
