KTK12 intrinsically safe visual intercom terminal for mining
KTK12 intrinsically safe visual intercom terminal for mining is a terminal device suitable for voice and visual intercom in explosive gas environments underground coal mines
Product Overview
The KTK12 intrinsically safe visual intercom terminal for mining is a terminal device suitable for voice and visual intercom in explosive gas environments underground coal mines. This product has functions such as one key call center, one key call to this group, any dial-up call, and on-site video collection. The intercom terminal has the advantages of clear and loud sound, simple installation, easy maintenance, anti-interference, and light weight.
safe and reliable
Compliant with intrinsic safety, with explosion-proof certification and coal safety certification, possessing explosion-proof, anti-corrosion, impact resistant, and anti-interference capabilities, able to withstand harsh working environments, maintain stable performance, and operate safely.
feature-rich
Visual network intercom, call and answer functions, one click call center or call our group; Keyboard dialing; Terminal status and dialing number display function; Add phone book and query call records; Update and restart.
High sound and image quality
Sound volume ≥ 85dB (A), distortion ≤ 10%; Under the condition of illumination of 50-300lux, the horizontal clarity should not be lower than 400 lines, and the grayscale discrimination level should not be less than 7 levels.

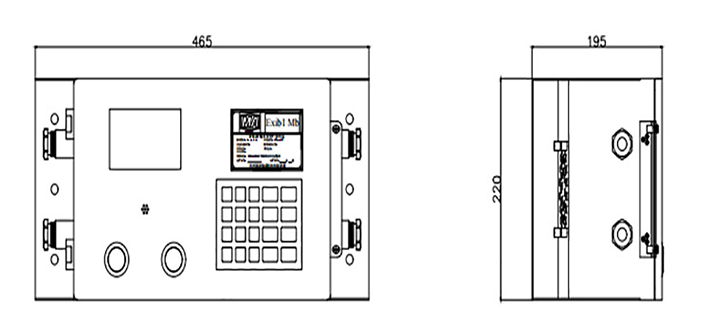

Working Principle
Audio and video data collection and transmission
The terminal collects audio signals through a microphone and video signals through a camera. After analog-to-digital conversion, the signals are transmitted to the network through a 1000Mbps Ethernet optical/electrical interface to achieve real-time uploading of audio and video data.
Network audio and video decoding and playback
-
The terminal receives audio and video data packets transmitted through the network, decodes them in real time through a built-in decoding chip, drives the speaker output through an amplifier, and drives the display screen display through a video signal, achieving bidirectional real-time communication.
Visual intercom interactive control
Users initiate calls through terminal buttons, and the system automatically establishes audio and video channels; The camera captures live footage, the microphone and speaker complete voice interaction, and the network interface ensures stable data transmission, achieving visual intercom between underground and ground.
Structural Composition

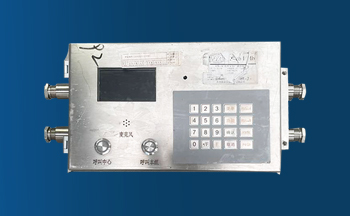

housing
Stainless steel Q235 explosion-proof material; High temperature resistance, anti-corrosion, explosion-proof, dustproof and waterproof; Suitable for explosion-proof environments underground in coal mines, with high protective performance.
display screen
Made of explosion-proof glass; 4.3-inch LCD display, clear display.
keyboard
The keyboard has 20 keys; The buttons are sensitive, reliable, wear-resistant and durable.
Mining power supply
Continuous and stable power supply, safe and reliable; Built in protection functions such as overcurrent, overcharge, and overdischarge.
Project Case
Guonuo weighing equipment has been successfully applied to multiple domestic and foreign enterprises and has gained widespread recognition

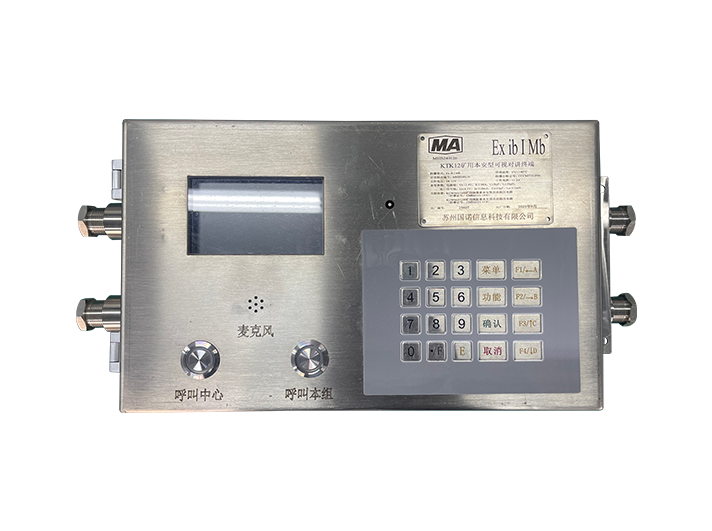

Production Process
Guonuo Technology adopts internationally leading production processes and equipment to ensure stable and reliable quality
Intrinsically safe explosion-proof process
Adopting intrinsic safety circuit design, certified with explosion-proof certificate and coal safety certification; The shell is made of anti-corrosion and impact resistant materials, and the internal circuit has an anti-interference shielding layer to ensure stable operation under harsh working conditions such as gas and coal dust.
Multi functional human-computer interaction technology
Integrated keyboard dialing, status display, phonebook management, and call history query functions; Support one click call center/team, with system update and restart capabilities, intuitive operation interface, suitable for complex underground operation needs.
Dual mode high-speed data transmission technology
Equipped with 2 gigabit optical ports (1000Mbps) and 2 electrical ports, supporting full duplex communication; The optical port adopts single-mode fiber transmission, and the electrical port is compatible with RJ45 interface, achieving high-speed and redundant data transmission from underground to the surface.
High fidelity audio and video capture technology
The audio system uses high-power speakers (loudness ≥ 85dB, distortion ≤ 10%), and the video uses low light CMOS sensors (clarity ≥ 400 lines, grayscale ≥ 7 levels at 50-300lux) to ensure clear voice and recognizable images.
