In the material conveying system of industrial production, electronic belt scales serve as precise dynamic monitors for material flow, with their measurement accuracy and operational reliability directly impacting production efficiency, production supervision, cost control, and quality management. However, traditional belt scales have long faced challenges such as accuracy drift, cumbersome maintenance, and intensive manual intervention.
The emergence of intelligent high-precision electronic belt scales is precisely aimed at addressing these pain points, integrating cutting-edge technologies to usher in a new chapter of intelligent continuous material measurement and management.
The intelligent high-precision electronic belt scale is far more than a simple upgrade of traditional mechanical equipment. It is a deep integration of precision sensor technology, real-time data processing capabilities, and artificial intelligence algorithms. Its core mission lies in breaking through traditional limitations, achieving long-term stable high-precision dynamic measurement in complex and changing industrial field environments (such as severe temperature fluctuations, large-angle conveyors, unavoidable belt deviation, and uneven material distribution), and endowing the equipment with unprecedented autonomous intelligence and management capabilities, thus laying a solid digital foundation for modern industry.
Precision Metrology: Breakthroughs in Core Technologies Lay a Reliable Foundation

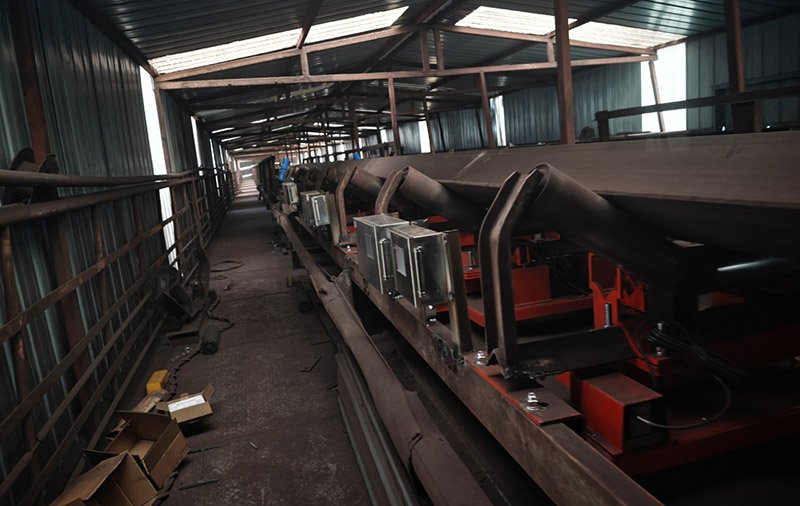

Revolutionary architecture design: Abandoning the traditional single or limited sensor layout approach, we adopt an innovative multi-sensor array architecture. This involves the continuous arrangement of 2-8 or even more groups of single-point suspension weighing units, with each group equipped with an independent digital weighing sensor, forming a dense data acquisition network.
This design effectively senses complex states such as uneven distribution of belt tension, local deformation, and instantaneous impact of materials, providing a comprehensive data foundation for subsequent precise algorithm compensation.
Hydraulic neural correction: Creating a favorable environment for belt scale metering: Belt deviation is a chronic issue that has long plagued metering accuracy. This equipment integrates an advanced hydraulic automatic correction system, with its core being a "neural center" that incorporates deep learning algorithms.
The system captures subtle changes in belt position through pressure feedback signals, not only instantly recognizing the trend of deviation but also predicting the trajectory of deviation development. The intelligent center then precisely drives the hydraulic actuator to apply dynamic adjustment force, achieving millisecond-level rapid closed-loop correction of the deviation. This process runs continuously, ensuring that the belt and weighing section are always in an ideal alignment state, completely eliminating the source of metering errors introduced by deviation.
Intelligent operation: "The more you use, the more accurate it becomes", ensuring continuous efficiency
- Distributed Edge Intelligence: Real-time Response, Disturbance-resistant and Worry-free: Traditional centralized data processing faces transmission delays and interference risks. This system adopts a distributed edge computing architecture, where each weighing unit and weighing sensor measure independently.
The damage of a group of weighing units or a sensor does not affect the measurement of other units. In addition, the "edge brain" completes the filtering, amplification, and preliminary computation (such as instantaneous flow segment calculation) of the original signal on-site, uploading only key feature data to the central controller.
This architecture significantly reduces signal transmission distance and external interference impact, greatly improving the system's real-time response capability and overall disturbance resistance, ensuring that measurement data remains highly clean and reliable at the source.
- Online automatic calibration: Unattended precision stability: Say goodbye to the tedious and downtime-consuming era of manual calibration. The system integrates standard rod codes and intelligent calibration algorithms. Based on the analysis of measurement results, the intelligent system can automatically initiate the online calibration procedure. The entire process does not require interruption of the production flow.
The equipment completes self-diagnosis and calibration correction while running, continuously maintaining the measurement accuracy at its best, truly achieving eternal precision under "unattended" conditions.
Efficient management: gaining insight into the overall situation and making strategic plans
- Intelligent Monitoring and Predictive Alerts: Preventing Problems Before They Arise: The system is equipped with a powerful health diagnostic engine that continuously monitors key parameters, such as the status of various sensors.
Combined with the built-in equipment fault knowledge graph and machine learning model, the system can keenly identify abnormal patterns. Once it detects any signs of potential faults, it immediately issues precise alerts (indications, alarms, emergency stops) in different levels, transforming reactive maintenance into proactive prevention, maximizing production continuity.

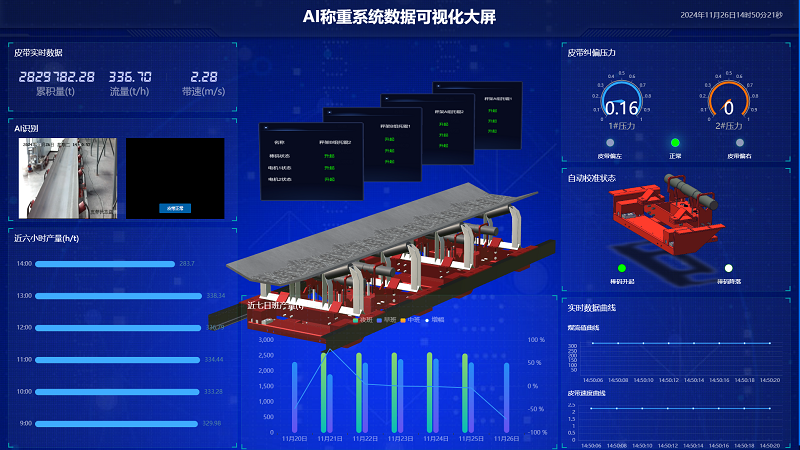

- Remote cloud monitoring and deep insight: management without boundaries: With the help of industrial IoT gateways, the full picture of equipment operation (real-time weight/flow curve, 3D diagram of measurement, equipment health score, alarm log, calibration record) is securely uploaded to the cloud platform.
Management personnel, regardless of their location, can conduct visual remote monitoring, parameter configuration, and access diagnostic reports through web pages or mobile applications. The platform also provides a powerful data analysis engine that supports multi-dimensional deep mining of material consumption trends, equipment efficiency indicators, and fault alarm records by shift, day, month, etc., generating reports to provide solid data support for optimizing production scheduling, fine cost accounting, and forward-looking decision-making.
The intelligent high-precision electronic belt scale lays a solid foundation through precise measurement (multi-array sensing + hydraulic neural correction), achieves autonomy and reliability with intelligent operation (edge computing + online self-calibration), and ultimately realizes the core value of efficient management (monitoring and early warning + remote cloud control + data insights). It has transcended the scope of a single measurement tool and evolved into a key neural node for intelligent control of modern industrial material flow.
