【On-site Issues】
The client is a middleman, with the end client being a coal mining enterprise. The belt scale is required to possess explosion-proof certification and coal mine safety approval (MA certification). The on-site conveyor has an inclination angle of approximately 10°, and real-time upload of measurement data is required for remote viewing by leaders.
【Installation and Commissioning】
Upon arrival at the project site, the company's after-sales engineer first inventoried the components of the explosion-proof belt scale, confirming that all parts were present and undamaged. The installation location and plan were verified, and the belt scale frame and components were transported to the installation site.
The following day, the installation of the explosion-proof belt scale was completed, including the fixation of the instrument and wiring. Over the next two days, the belt scale was debugged, and the calibration results were confirmed to be acceptable. Finally, on-site personnel were trained on the daily use, maintenance, and debugging methods of the explosion-proof belt scale to ensure proper application thereafter.
【Product Advantages】

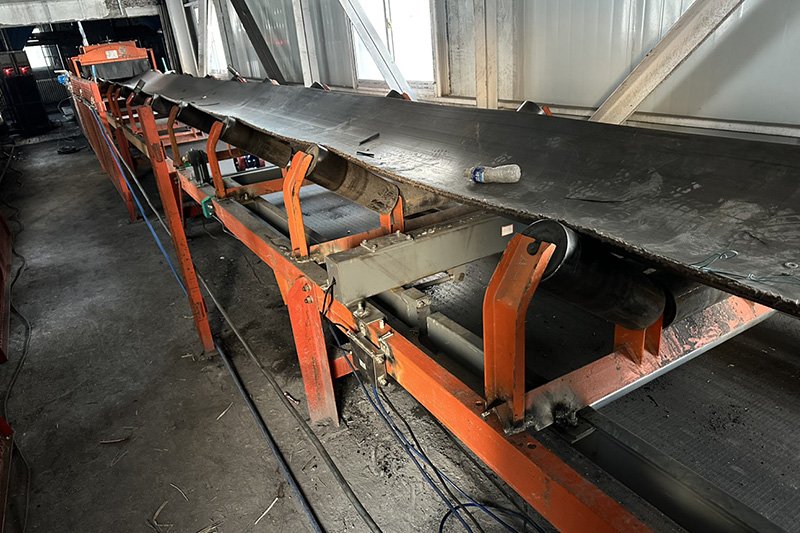

Based on the site conditions, an ICS-17A belt scale frame was configured, which is a four-idler double-lever type frame with high stability. The sensors are built-in and less prone to damage, effectively mitigating the impact of belt misalignment.
The instrument features a 304 stainless steel casing and a 7-inch touch screen, providing rich and intuitive data display. The mine-intrinsically safe weighing sensor offers precise detection and directly outputs RS485 signals, suitable for harsh underground environments and enhancing measurement accuracy.
【Client Feedback】
The explosion-proof belt scale has met production requirements in terms of measurement accuracy, and data can be viewed remotely. Production reports facilitate statistical analysis and management.
After a period of use, the measurement accuracy of the explosion-proof belt scale has remained consistent with the results immediately after installation and commissioning, demonstrating reliable product performance. The after-sales service was prompt; although there was a delay due to missing equipment on-site, installation commenced quickly once the equipment arrived.
