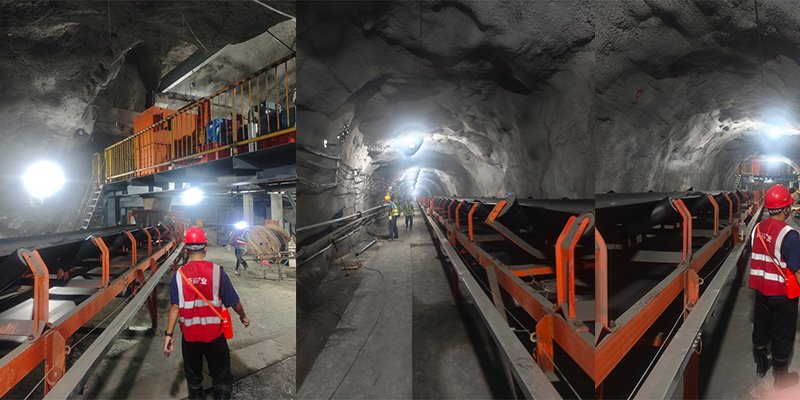

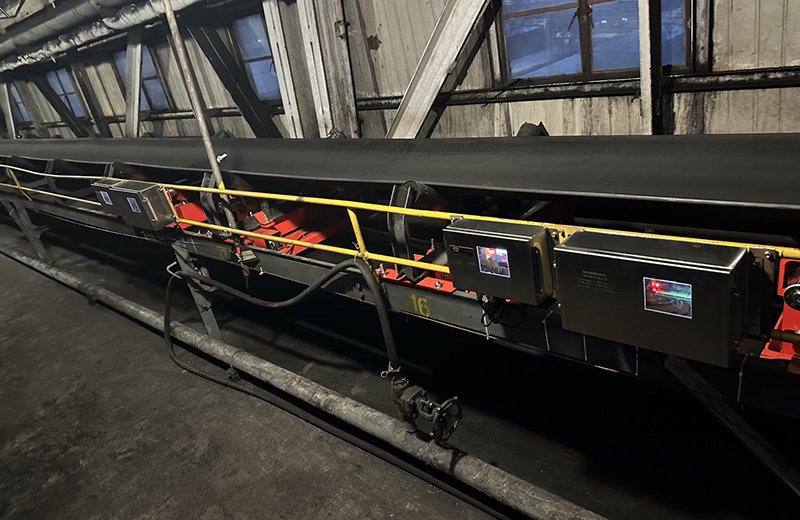

In the process of mine production, ensuring safety, improving efficiency, and reducing manual labor all require accurate material measurement and efficient measurement management. As an intelligent dynamic measuring equipment specifically designed for mine environments, the mine explosion-proof electronic belt scale has become an indispensable technical equipment for modern mining enterprises due to its unique functional advantages.
The mine explosion-proof electronic belt scale possesses a series of functions that can well meet the measurement and management needs of mines:
1. Independent Measurement and Data Storage
The mine explosion-proof belt scale has an independent measurement function, and its measurement results are not affected by power outages, faults, or communication line issues at the central station.
This means that even if there are problems with the communication lines in the mine or a power outage at the central station, the belt scale can still perform normal measurement work and automatically store the measurement data.
This independent measurement feature ensures the continuity of mine production and the integrity of data. At the same time, the belt scale can store a large amount of shift output data, which will be automatically uploaded without loss once the communication lines are restored, providing accurate data support for mine production management.
2. High-Precision Measurement and Stability
The dynamic measurement accuracy of the mine explosion-proof belt scale is high, with stable performance and reliable operation.
Under normal loads and in mine application environments, its dynamic measurement error can be controlled within ±0.25% to 1.0%. This high-precision measurement characteristic meets the strict requirements of mines for coal measurement, allowing enterprises to accurately grasp the material transportation situation in each production link and provide reliable bases for production scheduling, energy consumption control, and cost accounting.
Meanwhile, the belt scale has minimal zero drift and maintains long-term measurement accuracy, further improving the level of mine production management.
3. Explosion-Proof Safety and Intelligent Early Warning Mechanism
Mine environments often pose risks of flammable and explosive gases such as methane and dust. The explosion-proof belt scale meets national explosion-proof electrical equipment standards (such as the GB 3836 series) through key technologies such as explosion-proof enclosures and intrinsic safety circuits, effectively isolating potential safety hazards caused by electric sparks and high temperatures.
At the same time, the equipment integrates an intelligent diagnostic system that can monitor the operating status of weight sensors and speed sensors in real-time, issuing early warning signals for abnormal conditions such as overloading, uneven loading, and belt deviation, and notifying operators through audible and visual alarms or remote transmission.
This significantly reduces safety risks caused by equipment failures and lowers maintenance costs and inspection frequencies for the explosion-proof belt scale.
4. Data Integration and Information Management
Modern mine explosion-proof belt scales not only have basic measurement functions but also achieve full-process data management through deep integration with mine information systems.
The equipment's built-in storage module can record historical measurement data and support real-time data upload to a central control platform or cloud server via industrial Ethernet, 4G/5G, or optical fiber.
Combined with production management software, enterprises can generate output statistical reports and trend analysis charts to assist managers in optimizing production plans and tracing material flows. Some systems also support hierarchical permission management to ensure data security and operational compliance.
5. Adaptability to Harsh Environments and Low-Maintenance Design
In response to the complex working conditions in mines such as high humidity, strong vibration, and heavy dust, the mine explosion-proof belt scale adopts a fully sealed structure and high-strength materials, with a protection rating typically reaching IP65 or above, effectively resisting the invasion of corrosive gases and dust.
Its modular design simplifies the installation and maintenance processes, with key components supporting quick replacement to minimize downtime. Additionally, high-precision combined weighing frames equipped with standard barcodes and online calibration devices can reduce the impact of belt tension fluctuations on measurement accuracy and avoid manual shutdown for calibration, ensuring both the long-term stable operation of the explosion-proof belt scale and production continuity.
The mine explosion-proof electronic belt scale constructs a full-chain solution from real-time monitoring of mine conveyor lines to decision support by integrating precision dynamic measurement technology, intelligent safety protection, and digital management capabilities. It not only addresses the pain points of low efficiency and large errors in traditional mine measurement methods but also promotes the intelligent upgrading of mine management through data empowerment.
