In the core process of industrial bulk material handling—the belt conveyor system—every weighing of materials carries far more significance than just the weight itself. When it comes to trade settlement, the measurement error of conveyed materials directly impacts economic gains and losses, as well as the trust relationship between trading parties.
The precision limitations of traditional belt scales under complex operating conditions have increasingly become a potential source of risk undermining trade fairness. The deep integration of matrix-type high-precision belt scales and automatic online calibration technology is reshaping the measurement foundation for trade settlement, paving a solid path for measurement fairness and data reliability.

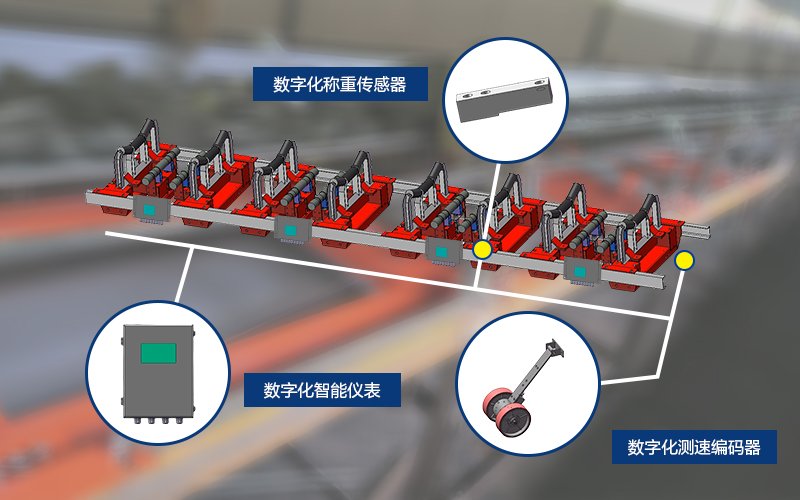

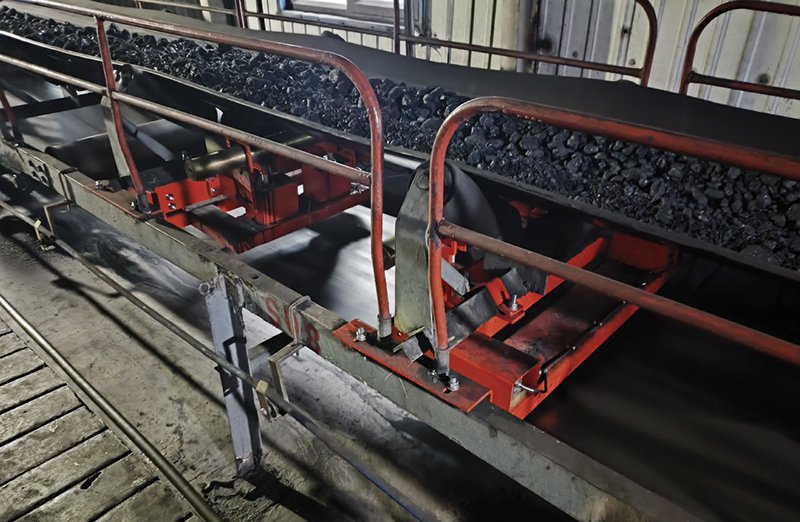

Matrix Architecture: Deconstructing Complex Stresses and Building the Foundation of Precision
The matrix-type high-precision belt scale revolutionizes the sensor support mode of traditional belt scales. It divides the load-bearing section into several independent and precisely coordinated measurement units (referred to as "matrix units"), each integrating a high-sensitivity sensor array and an intelligent processing unit. This distributed architecture enables holistic capture and collaborative resolution of material load distribution and belt tension fluctuations:
- Distributed Sensing, Global Analysis: Each matrix unit acts like a precise nerve ending, continuously sensing minute load changes and belt tension fluctuations in its designated area. The system aggregates global information through a high-speed data network to construct a detailed global distribution map of material loads.
- Collaborative Computation, Disturbance Compensation: The core algorithm dynamically identifies and intelligently compensates for disturbances from complex operating conditions such as belt misalignment, uneven tension, and vibration impacts based on stress data from each unit. Through deep fusion of multi-source data and model prediction, it effectively filters out interference noise and isolates the true signal of material net weight.
- Redundancy Assurance, Enhanced Confidence: The parallel operation of multiple units naturally forms a redundant design. Even if individual units encounter extreme operating conditions or sudden failures, the system can still rely on information from the remaining units for intelligent reconstruction and fault-tolerant computation, ensuring robust continuity and high-confidence output of the overall measurement process.
This enables the matrix-type belt scale to demonstrate superior performance over traditional structures in overcoming belt effects, handling non-uniform loads, and resisting transient impacts, providing stable accuracy close to static weighing for trade settlement.

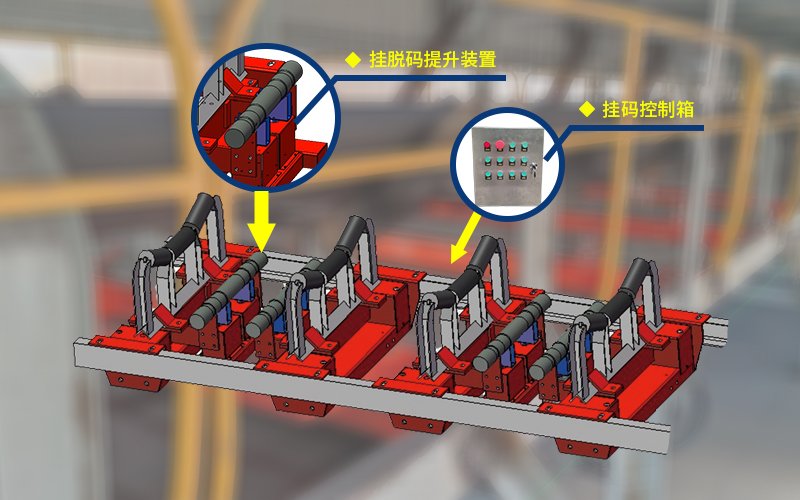

Automatic Online Calibration: Enhancing Long-term Measurement Stability and Data Reliability
Precision cannot be achieved once and for all. Factors such as temperature drift, mechanical wear, and changes in material properties constantly erode the baseline credibility of the measurement system. Traditional reliance on manual periodic offline calibration not only incurs significant costs but also poses hidden risks of gradually increasing unknown deviations over long calibration intervals. Automatic online calibration technology significantly enhances long-term measurement stability:
- Seamless Integration, Real-time Monitoring: Standard barcodes are integrated into the hardware system of the matrix-type belt scale, and intelligent calibration algorithms continuously analyze and perform online calibration without requiring shutdowns or interruptions to material flow.
- Intelligent Triggering, Automatic Execution: The system automatically triggers the calibration process based on material flow status and measurement result analysis. A built-in high-precision reference source is instantaneously applied to the measurement section, with the entire process quietly completed under normal belt operation.
- Instant Correction, Closed-loop Control: The system continuously compares measured values with reference true values, accurately calculates the current deviation amount, and automatically updates calibration coefficients. This forms a rigorous closed-loop feedback of "perception-calibration-correction," ensuring that system accuracy remains anchored at a trustworthy baseline point.
Automatic online calibration completely eliminates the lag and error introduction risks associated with manual intervention, keeping the matrix-type belt scale measurement system in its "optimal state" at all times and providing a reliable measurement baseline for continuous, uninterrupted trade settlement.
The deep integration of matrix-type high-precision belt scales and automatic online calibration technology ultimately delivers two unshakable pillars for trade settlement:
- Measurement Fairness: "What you see is what you get" in true measurement. By capturing true loads at the source, intelligently eliminating complex interferences, and instantly eliminating system deviations, it ensures that the measurement result for every ton of material closely approaches its physical true value.
Trading parties, based on the same objective, transparent, and traceable measurement data, fundamentally eliminate disputes arising from measurement ambiguities and lay the foundation for fair transactions.
- Data Reliability: "Permanent online" stability and trustworthiness. The highly redundant matrix architecture design resists single-point failures; continuous automatic online calibration combats environmental drift and natural degradation; and full-process data encryption and blockchain tracing ensure records are tamper-proof.
Every piece of measurement data generated thereby possesses complete authenticity, consistency, and auditability, serving as a solid basis for corporate operational decision-making, financial accounting, and compliance auditing.
