In mining, building materials, cement, ports and other occasions, belt conveyors are used to transport bulk materials. In order to grasp the weight of materials for production calculations, an efficient method is to weigh them during the material transportation process.
Belt conveyor weighing scale is a weighing device used on belt conveyors to measure and weigh the conveyed materials during their operation. It does not require subdivision of material quality or interruption of conveyor operation, and is a continuous and dynamic measuring scale.
There are various types of belt conveyor weighing scales, and currently the most widely used, efficient, stable, durable, and accurate belt scales are mainly electronic belt scales. They are mainly composed of weighing sensors, speed sensors, scale frames, and instrument hosts.
The scale frame is the load-bearing device of the electronic belt scale, and the weighing sensor obtains the material load signal. The speed sensor obtains the belt conveyor speed signal, and the instrument host is a device that receives and processes the signal to display the weight of the material. The belt scale has a simple structure, easy installation and use, high work efficiency, and high cost-effectiveness.
Guonuo Technology has designed and manufactured a new type of belt conveyor measuring scale - high-precision electronic belt scale - based on the application requirements and practical experience in the field of belt conveyor measuring scales, and integrated advanced dynamic weighing technology. The new scale has high measurement accuracy and work efficiency, and has made innovative upgrades to the components such as load-bearing devices, sensors, and instruments.

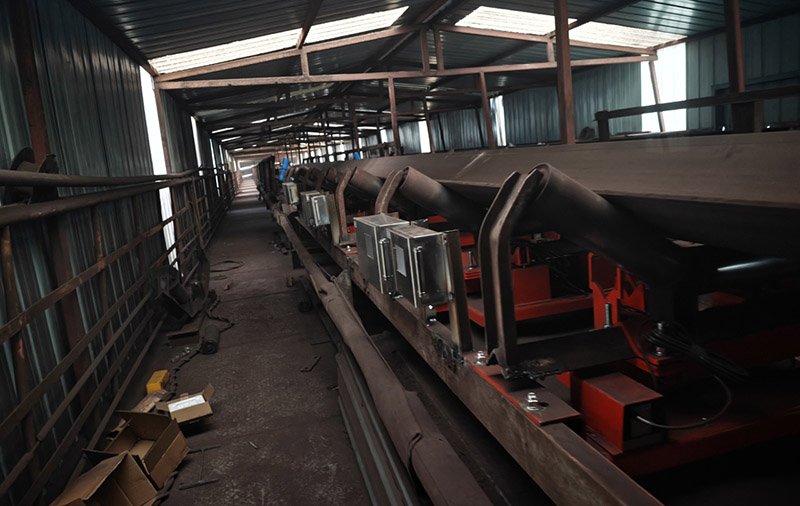

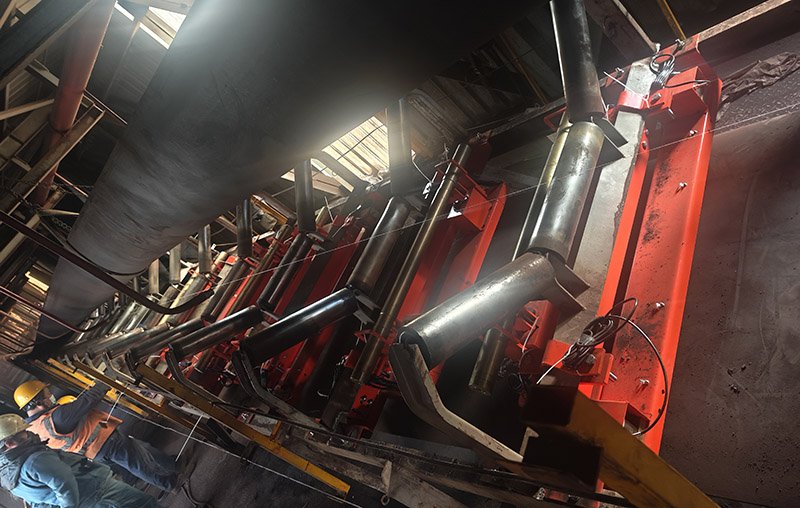

The load-bearing device of Guonuo Technology's high-precision electronic belt scale adopts a multi roller fully suspended structure without crossbeams. Each roller is equipped with four weighing sensors to form its own weighing unit, and multiple weighing units are combined to form a matrix measurement platform.
The measurement accuracy is much higher than that of previous lever type weighing structures. This load-bearing device directly transmits force, without intermediate force transmission, mechanical component influence, or fulcrum friction.
It has a smaller horizontal surface and is almost unaffected by dust accumulation, making weighing more accurate. This simpler structure of mechanical components can greatly reduce material blockage on the weighing structure, avoiding any impact on measurement and reducing daily maintenance.
In the past, electronic belt scale sensors mostly used analog signals. Guonuo Technology's high-precision electronic belt scale uses digital signals, which have much better anti-interference ability than analog sensors. The signal transmission process is not affected by external factors, and it has functions such as anti lateral force, overload protection, temperature compensation, etc., ensuring the accuracy of weight measurement. It is a high-precision weight measurement sensor.
The speed sensor of Guonuo Technology's high-precision electronic belt scale collects the speed of the lower surface of the upper belt, avoiding errors caused by changes in belt tension. The structure adopts a double wheel car wrapped rubber design, eliminating errors caused by belt slippage and ensuring reliable contact with the belt for more accurate speed measurement.
Intelligent instruments have functions such as automatic zero adjustment, self checking for faults, digital calibration, and data display. They display Chinese characters and numbers intuitively, menu prompts, historical data can be checked, one click zero calibration, and easy operation and maintenance.
In addition, the instrument is equipped with a communication interface that can be connected to the enterprise network for data sharing. Through the upper computer software system of the belt scale, managers can view measurement data and equipment status in real time.
Through technological and structural innovation, Guonuo Technology provides users with a high-precision and high-efficiency belt conveyor measuring scale.
