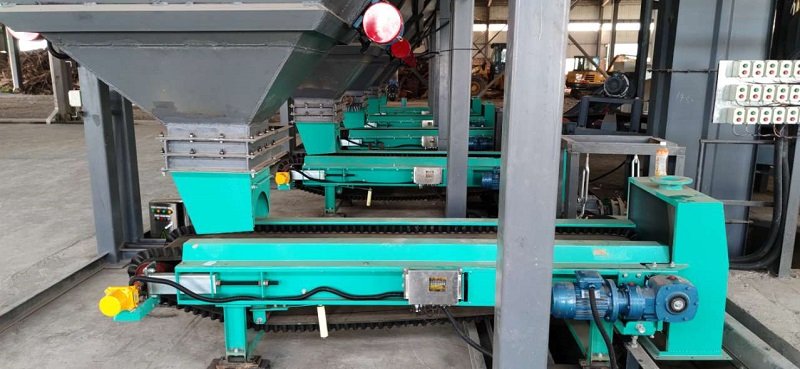

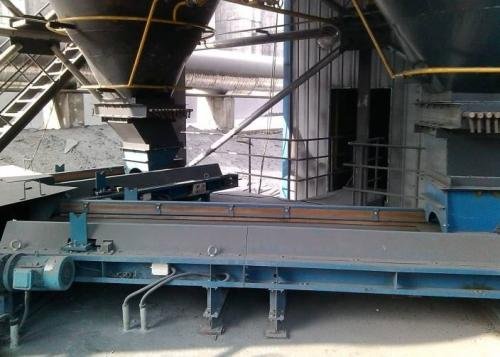

The weighing type quantitative feeder is a device that dynamically weighs solid bulk materials during the conveying process, and completes the quantitative feeder based on the dynamic weighing. It has a wide range of applications in the quantitative control of powder, granular, and block materials, involving industries such as building materials, steel, chemical industry, environmental protection, grain, cement, mining, etc.
The weighing type quantitative feeder plays an important role in production activities, improving the level of refined process control and information-based production management, enhancing production efficiency and quality, and reducing production costs, which is of great significance. Therefore, the performance and quality of the weighing type quantitative feeder are extremely important, and the requirements for manufacturers are also high.
Guonuo Technology is a professional producer and supplier of industrial dynamic weighing, automation control equipment, and system solutions. Its research and development, production, and manufacturing of weighing quantitative feeders have customers in various industries, and its advantages and characteristics are reflected in numerous practical application cases.
(1) Customized products to meet on-site operational requirements
The application of weighing type quantitative feeders varies greatly, with different industries, working environments, and production processes requiring different equipment requirements. For example, if the distance from the discharge port to the discharge port is different, the length of the feeder is required to be different; Different material characteristics require different conveying devices for feeders, such as sealed conveying for powder materials that are prone to dust; Different materials and production conditions also have different requirements for the accuracy of the feeder. These differences result in many variations in the universal characteristics of weighing quantitative feeders.
Guonuo Technology's weighing feeder is configured with different structural types and components based on the actual application requirements of working conditions, ensuring on-site adaptability and providing users with cost-effective products. For example, for flowable granular or powdery materials, or unstable material dropping situations, during production time, Guonuo provides feeding machines with drop inserts and material rectification baffles to make the materials on the belt as uniform and stable as possible, reduce belt pressure, improve measurement accuracy and stability;
For working environments with high levels of dust, Guonuo has equipped the feeder with an automatic cleaning device to reduce daily maintenance workload and improve the durability of the feeder; For materials that require sealed transportation (such as powders, chemicals, etc.), sealed spiral tubes can be used for transportation.
(2) High precision and stability in measurement and control
l To ensure that the weighing quantitative feeder meets the on-site working conditions, Guonuo Technology has equipped it with a digital weighing sensor with strong anti-interference ability, high detection accuracy, and accurate and stable signals;
l The system comes with an online calibration function to maintain overall accuracy; Configure automatic belt correction and tensioning devices to prevent belt deviation, maintain constant belt tension, and reduce the impact of belts on measurement accuracy;
l PLC has high reliability and strong anti-interference ability.
In short, various technical and design measures are taken to ensure the measurement and control accuracy of the feeder.
(3) High operability, simple and convenient
The weighing type quantitative feeder itself has good operability, and on-site personnel only need to set simple parameters and start stop operations through the instrument, and the feeder will work automatically; In addition, the feeder instrument interface is user-friendly with menu prompts, making it easy to use. In many industrial applications, the feeder is composed of multiple applications that integrate computer management and other technologies to form a batching system.
In this case, it would be cumbersome to manage and operate the feeder separately. Guonuo Technology is equipped with an integrated control cabinet, and the feeder instruments are integrated into the control cabinet for unified management and operation.
(4) High level of informatization, remote management
Guonuo Technology's weighing quantitative feeder instrument has a communication interface that connects with other upper computers in the enterprise to achieve data sharing. Real time production data is uploaded to the server, and leaders can remotely grasp the production situation and control settings through the upper computer software system. Production data, fault records, and operation information records can be accessed for production analysis.
After service investigation and user feedback, Guonuo Technology's weighing quantitative feeder has good quality and excellent performance, meeting on-site production needs and providing support for production management.
