According to different installation and application environments, electronic belt scales can be divided into non explosion proof and explosion proof types. Mining explosion-proof electronic belt scales are electronic belt scales that apply explosion-proof technology and can operate safely and reliably in flammable and explosive environments underground in coal mines. Their performance and adaptability are superior to ordinary electronic belt scales.

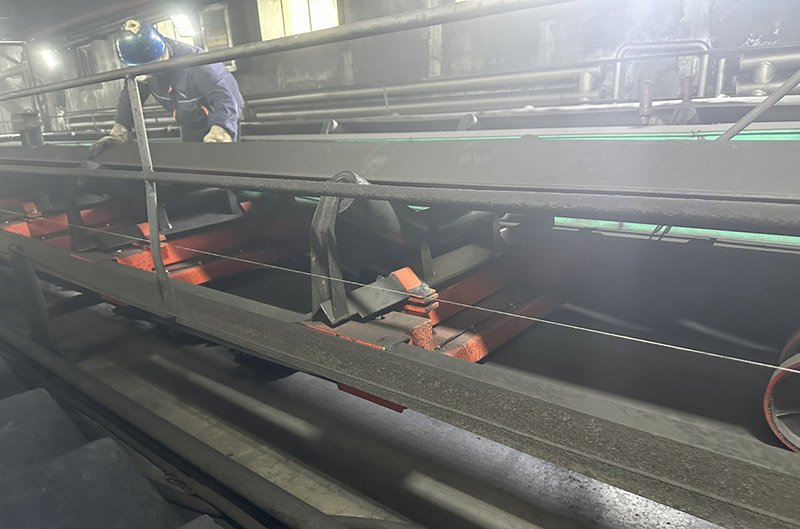

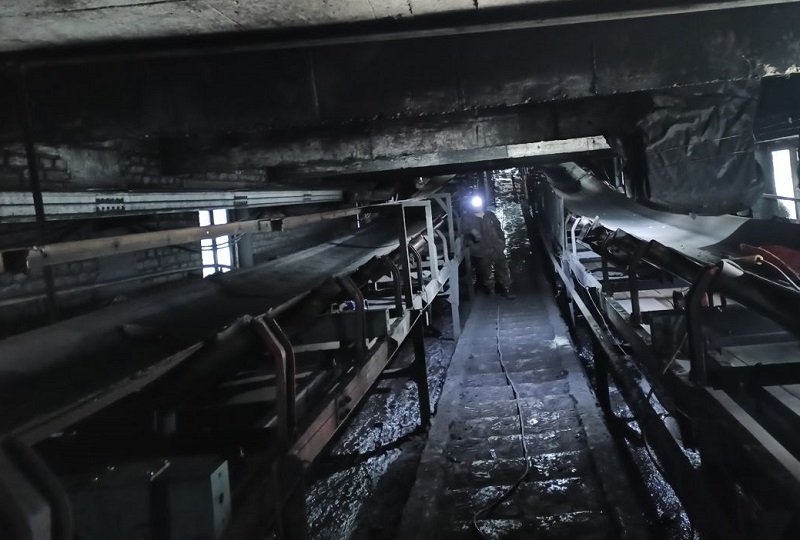

The ICS-ST mining explosion-proof electronic belt scale is an information-based electronic belt scale developed by Guonuo Technology based on the ICS electronic belt scale, which is equipped with explosion-proof belt scale instruments, explosion-proof belt scale substations, explosion-proof weighing sensors, and explosion-proof speed sensors. It is specifically designed for use in coal mines containing flammable and explosive gases and coal dust, to measure raw coal and provide output data for production control.
1、Functional characteristics of ICS-ST mining explosion-proof electronic belt scale
(1) The scale frame of the belt scale can be customized according to the conditions of the belt conveyor (angle, length), environmental conditions, and accuracy requirements. Different types of scale frame structures can be selected, but overall, the scale frame structure is sturdy, structurally reasonable, stable and reliable, with a certain degree of impact resistance and wear resistance;
(2) S-type shear structure weighing sensor, stainless steel sealed shell, effectively eliminates the influence of lateral force on weighing, has anti-corrosion, dustproof, waterproof capabilities, and improves the stability and durability of the sensor;
(3) The dual wheel car structure speed sensor, coated with rubber technology, prevents flying jump, DC pulse, has stronger environmental adaptability and durability, and can provide stable speed signals in harsh coal mines; Real time speed detection of the conveyor belt with accurate data;
(4) The belt scale instrument adopts microcomputer technology and menu guided operation. Setting, calibration and other operations can be remotely completed. It can query historical weighing data, intelligently analyze the operation status of the scale frame, weighing and speed measurement status, optimize processing, and has a communication interface to achieve real-time sharing of measurement data. It has fast processing speed, high accuracy and strong functions; One click zero calibration, easy maintenance;
(5) Configure the belt scale substation for centralized data display, optimize sensor signals, automatically alarm, improve maintenance efficiency, optimize data transmission, and ensure high reliability of data transmission.
2、Functions of ICS-ST Explosion proof Electronic Belt Weighing System for Mining Applications
(1) Complete dynamic real-time measurement of raw coal transportation process with high accuracy.
(2) The underground electronic belt scales can be connected to the network to communicate with the ground host and transmit real-time production data to the ground host. The ground host can monitor, set parameters, calibrate, and perform other operations on the underground electronic belt scales without the need to open the explosion-proof casing, achieving remote management.
(3) Configure the ground upper computer belt scale system, program industrial configuration software, easy to operate, can provide managers with complete production data, belt scale operation status, display belt scale equipment name, belt scale operation status, flow rate, operation time, etc., can query shift and time period production data, flow history curve, historical records and other data, managers can remotely view, convenient to strengthen production supervision.
Guonuo Technology's ICS-ST explosion-proof electronic belt scale for mining can provide accurate and reliable measurement support for raw coal measurement underground in coal mines, and the entire production system provides an effective means for controlling coal mine production output.
