Electronic belt scales are used for continuous dynamic measurement of bulk materials flowing through belt conveyors. Due to their advantages such as fast speed, high work efficiency, high accuracy, good stability, easy installation, simple operation, and advanced calibration methods, they are indispensable equipment tools for modern information management and participation in industrial production process automation online detection and control in industries such as coal, building materials, metallurgy, and power.
Among them, electronic belt scales are indispensable in the measurement of raw materials and products in coal washing plants. Recently, multiple coal washing plant projects of Guonuo Technology have applied ICS-17A electronic belt scales. According to user feedback, the measurement accuracy, stability, operation, and management functions of this belt scale meet the requirements of coal washing plant production processes, production environment conditions, and production management. The reason why Guonuo Technology's ICS-17A electronic belt scale can meet the application needs of coal washing plants ultimately lies in its structural composition, performance and functions.
The structural composition of ICS-17A electronic belt scale

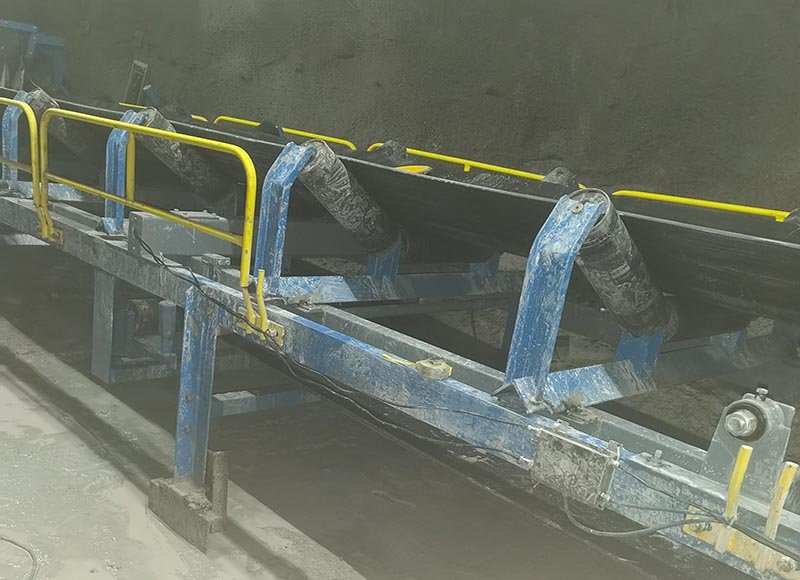

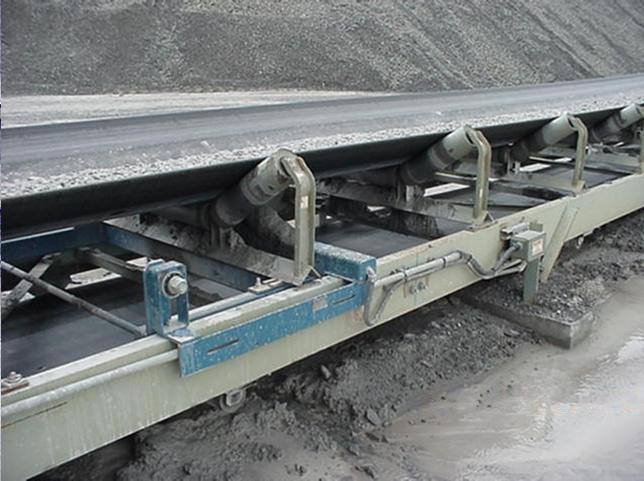

The scale frame of the ICS-17A electronic belt scale is a double bar bridge structure, with the main body welded from rectangular pipes, which has good rigidity. Due to the small area of dust and debris accumulation on the bridge structure, it avoids mechanical zero point changes caused by this. The four pivot supports used in the scale frame are designed as "ear axis supports", which improves the linearity and sensitivity of the scale frame, and also demonstrates superiority in resisting mechanical vibration and belt bias load.
There are two digital high-precision weighing sensors installed on the scale frame of the ICS-17A electronic belt scale, which have high sensitivity and strong anti-interference ability of digital signals; Made of alloy steel material, it has better impact resistance and stability; The weighing sensor has excellent temperature zeroing performance and can meet high-precision stress requirements. At the same time, dual wheel speed sensors are configured to avoid jumping problems and accurately detect belt speed.
Belt scale instrument washing microcomputer accumulator device, with rich intelligent functions, can simultaneously receive signals, calculate, display data, upload data, etc., with no lag in operation; The instrument can also monitor the actual measurement of the entire belt scale, with functions such as online monitoring, intelligent diagnosis, and online zero adjustment, improving accuracy and stability.
Application benefits of ICS-17A electronic belt scale in coal washing plant
ICS-17A electronic belt weigher accurately and continuously measures raw coal, clean coal, middling coal and waste materials, and provides data, which can provide basis for monitoring production, quantitative analysis, and adjustment of production of the coal washing plant, and then help to improve the economic benefits of the coal washing plant.
The upper computer system of the belt scale can enable coal washing plant managers to remotely monitor raw material consumption, product quantity, real-time data, and historical data reports, which can help improve the management level of the coal washing plant.
In addition, in the case where external conditions such as stable belt operation, constant tension, and no vibration do not affect the measurement of the belt scale, the abnormal measurement data of the belt scale may still occur, which may cause problems with the coal washing process and coal quality, and help the coal washing plant monitor the production process.
