As the core cost component of power plants, coal consumption control, cost accounting, and environmental standards are directly determined by its measurement accuracy and transportation efficiency. Traditional belt scales have long been unable to meet the stringent requirements of modern power plants due to pain points such as the need for shutdown calibration, frequent manual operation and maintenance, and severe accuracy drift.
Guonuo automatic bar code high-precision belt scale provides a hardcore solution for coal transportation measurement and refined management in large power plants, with three core advantages: non-stop calibration, fully automated operation, and long-term high-precision stability.
The coal transportation system of large power plants has typical working conditions of continuous operation, high flow rate, high dust, and strong vibration, and the shortcomings of traditional belt scales are highlighted in this environment.
On the one hand, traditional equipment relies on manual shutdown for offline calibration. Each calibration requires interrupting the coal transportation process, which takes 1-2 hours. Frequent shutdowns seriously affect the continuity of power generation, and the accuracy of manual calibration is affected by operational experience. The calibration error is relatively large, sometimes even exceeding ± 1%.
On the other hand, factors such as belt tension fluctuations, material imbalance, and dust accumulation can easily lead to accuracy drift, requiring regular inspection and maintenance by dedicated personnel. The high labor cost and data lag make it difficult to support real-time management. More importantly, inaccurate measurement can directly lead to distorted coal consumption accounting and imbalanced coal blending ratios, resulting in a decrease in boiler thermal efficiency and excessive environmental emissions, causing economic losses and compliance risks to power plants.

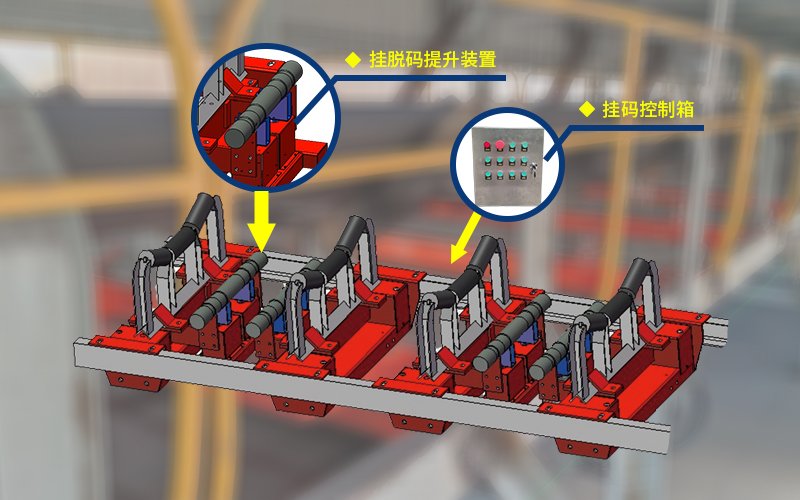

The Guonuo automatic bar code high-precision belt scale accurately solves the pain points of traditional equipment. Its automatic bar code online calibration technology integrates precision standard bar codes and electric automatic loading devices, without the need for shutdown or manual intervention. The system can automatically complete error detection and correction in a timed or real-time manner. The calibration process is synchronized with coal transportation operations, completely eliminating downtime losses and ensuring 24-hour continuous and stable operation of the coal transportation system.
At the same time, the equipment is equipped with AI intelligent algorithms and a fully suspended matrix scale frame. It adopts a distributed multi-point sensing design, which can perceive material load, belt speed and slope changes from multiple dimensions, dynamically compensate for tension fluctuations, deviation and other interferences, and maintain a high precision of ± 0.2% for a long time, far exceeding the industry's 0.5 level standard. It can be directly used in high-precision scenarios such as trade settlement and coal consumption assessment.
By incorporating standard bar codes and AI intelligent algorithms, the device has achieved online automatic real-time calibration. Not only does it save time for manual weight handling and on-site operations, but more importantly, the system can provide real-time monitoring and intelligent diagnosis of equipment health status. If potential hazards such as sensor drift and roller wear are detected, the system will issue maintenance warnings in advance to guide operation and maintenance personnel to intervene accurately, transforming passive repair into active maintenance.
In practical applications, AI automatic bar code belt scales can reduce maintenance workload by about 60% and significantly shorten unplanned downtime. This means that power plant operators can be freed from heavy and repetitive "watch over" tasks and focus on more valuable production optimization and data analysis work.
Accurate measurement is the core cornerstone of refined management in power plants, and the Guonuo automatic bar code high-precision belt scale empowers the optimization of the entire power plant chain management with stable accuracy.
At the cost control level, the accuracy of coal measurement at the factory has been improved, eliminating measurement disputes between supply and demand sides; Real time and accurate measurement of coal entering the furnace supports precise accounting of coal consumption and assists power plants in accurately controlling power generation costs.
At the level of production optimization, precise coal blending measurement data is used to ensure accurate blending of different coal qualities, stabilize the calorific value of fuel entering the furnace, and improve boiler combustion efficiency;
At the level of intelligent decision-making, real-time and traceable measurement data provides data support for power plant production scheduling, equipment maintenance, and cost analysis, promoting the transformation of management from "experience driven" to "data-driven".

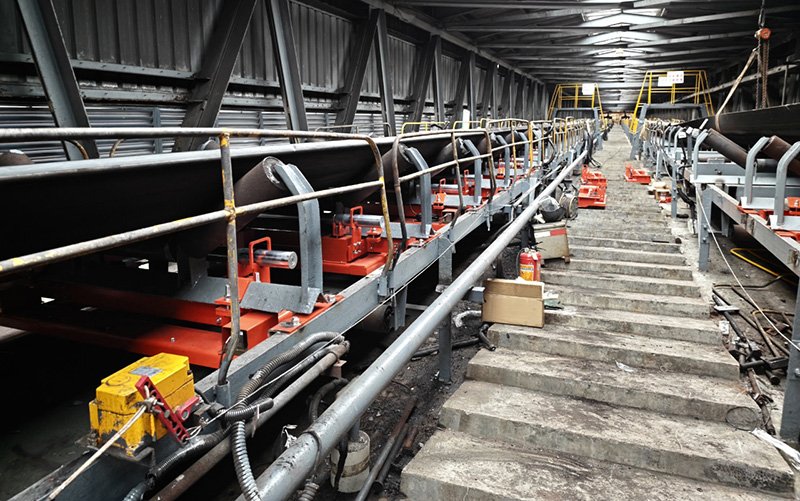

The value of theory lies in its application. At the key metering point of middling coal Lu'an Power Plant for coal transportation and distribution, the automatic bar weight high-precision belt weigher of Guonuo Technology has been put into stable operation.
The feedback from the power plant shows that the equipment not only meets the strict requirements of high-precision measurement for fuel refinement management, but its intelligent control system effectively responds to complex working conditions such as on-site belt tension fluctuations, material impact, and environmental interference, significantly reducing measurement deviations caused by environmental or equipment factors.
More importantly, the automatic bar code verification function completely solves the problem of low manual verification efficiency and affecting production continuity, making daily accuracy maintenance efficient, convenient, and traceable. Actual test data shows that this scheme has continuously provided stable high-precision measurement data for power plants, becoming an indispensable cornerstone for fuel cost control and efficient operation.
