The ICS-17A electronic belt scale adopts a very classic double bar belt scale structure, equipped with four sets of rollers, supported by two pull type weighing sensors in the middle, and supported by frictionless ear pivot points on the outer side. This belt scale has excellent rigidity and durability, long service life, high cost-effectiveness, precise and stable measurement, and is widely used in industries such as coal mines, non coal mines, power plants, chemicals, and cement.
Recently, Guonuo Technology has completed the application project of ICS-17A electronic belt scale in coal mines and iron mines. Based on the feedback from on-site practical applications, the Guonuo Technology ICS-17A belt scale not only meets the requirements of on-site measurement accuracy and can operate stably and reliably in coal and iron mining environments, but also provides users with measurement management data. The main reason for this is the product quality and excellent technology
(1) The protective measures for the weighing sensor are well done, with an industrial grade sealed shell that is dustproof and waterproof, strong protection, long service life, good stability, high detection accuracy, and strong anti-interference ability.
(2) The structure of the speed sensor dual wheel car is connected to the active roller or large-diameter speed measuring roller, with a large contact surface and a large wrap angle, which can minimize the error caused by roller slippage; Adopting a soft connection method, it has a long service life and strong adaptability to harsh working conditions.
(3) Fully digital intelligent instrument, fast data processing speed, high operating efficiency, intelligent diagnosis and analysis of belt scales, simple and convenient calibration, automatic zero adjustment, and software technology and functionality to improve the measurement accuracy and stability of belt scales as much as possible.
(4) Rectangular steel structure scale frame, with good rigidity, minimizes horizontal area as much as possible, and improves the adaptability of the scale frame.
(5) Rich interface technology and standard protocol connections make it easy to connect to the information network, upload data, and share measurement data with other upper computers for remote supervision.
ICS-17A electronic belt scale is widely used in coal mine production monitoring

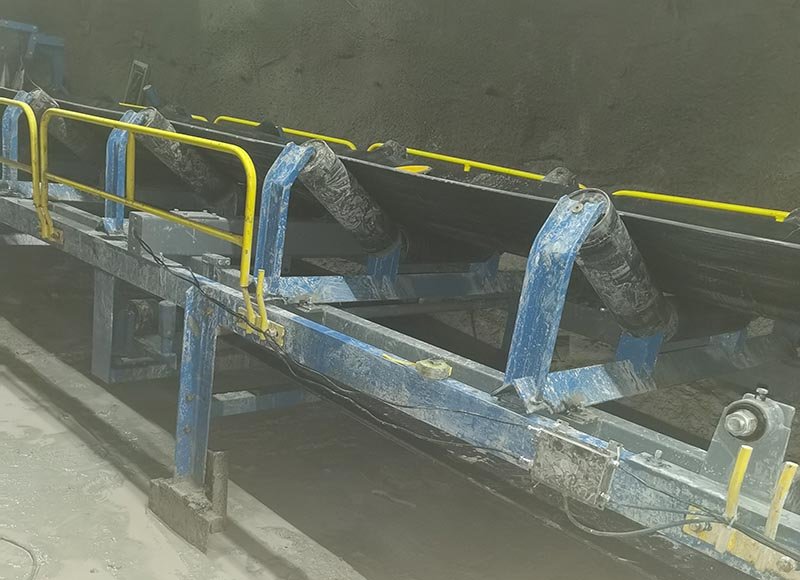

In a certain coal mine, the ICS-17A electronic belt scale with explosion-proof performance is used. The weighing bridge is no different from ordinary belt scales, but the equipped sensors, instruments and other components have safe and reliable explosion-proof performance, which can adapt to various dangerous situations such as underground coal mines and entrances and exits.
To monitor the coal production of coal mines and ensure that they are mined according to plan, it is necessary to accurately grasp the coal production in real time from the source. The ICS-17A belt scale is applied to coal conveyors in coal mines to automatically monitor coal production and upload the monitored production data to the ground monitoring center, providing data basis for coal production monitoring.

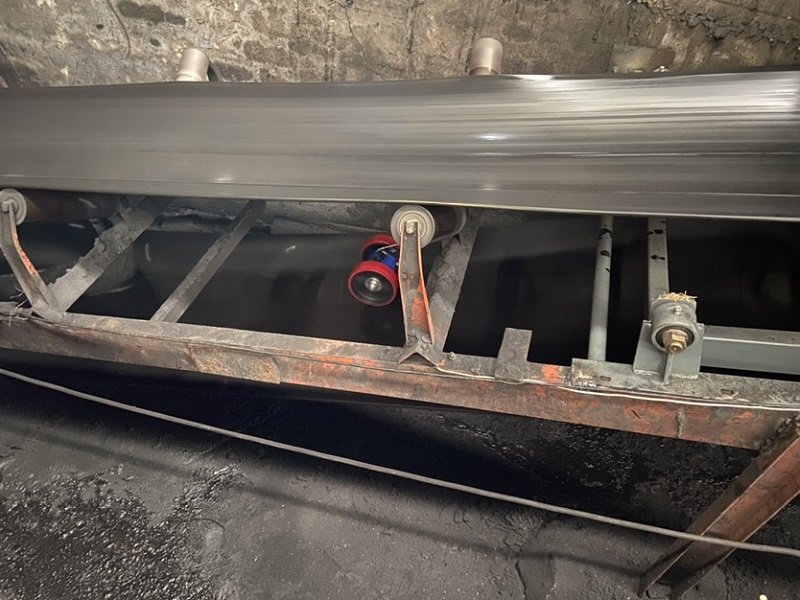

Application of ICS-17A electronic belt scale in iron ore mining
In a certain iron mine, two belt conveyors are used to transport iron ore with a long distance, a belt width of 1000mm, a roller spacing of 1000mm, and a belt speed of 1.56m/s, with a required accuracy of 0.5%. Based on the actual application effect of the ICS-17A electronic belt scale, the accuracy of the belt scale is better than 0.5% and can be maintained within this range for a long time. In addition, through the configured ICS-17A belt scale upper computer system, mining leaders can remotely grasp the production situation of iron ore, providing support for subsequent smelting and production comparison.
