An electronic belt scale is a measuring instrument that dynamically weighs materials during the operation of a belt conveyor. It completes material weighing without interruption of material flow, and can obtain both the instantaneous flow rate and the cumulative flow rate of materials. Electronic belt scales are widely used in short distance material transportation on belt conveyors due to their high weighing efficiency.
However, with the development of industrial production, there is an increasing demand for comprehensive performance such as measurement accuracy, stability, maintenance and calibration of electronic belt scales. Many traditional electronic belt scales can no longer meet the requirements of industrial production, trade settlement and other applications.
Guonuo Technology has rich experience in dynamic measurement and industrial automation control technology, with numerous cases of belt conveyor measurement. We are well aware of customers' needs for belt conveyor measurement and have designed and manufactured a new type of industrial electronic belt scale, which has great advantages and characteristics in practical industrial production applications.
(1) Scale frame

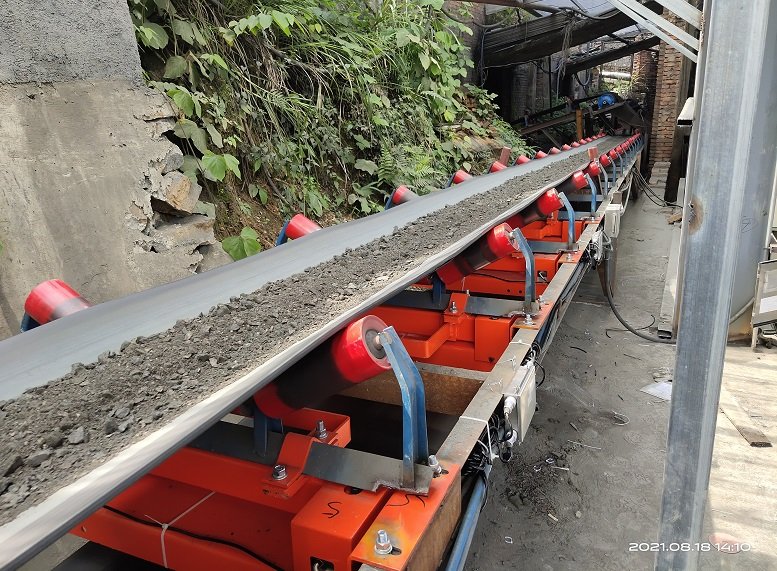

Guonuo Technology's new industrial electronic belt scale adopts a fully suspended belt scale frame, which directly supports and hangs four weighing sensors. The load signal of the weighing sensor is not affected by tare weight, and the signal source is accurate.
The overall characteristics include:
firstly, stable and reliable measurement performance. The fully suspended scale frame can be combined with weighing units according to the measurement, and the effective measurement section can be increased. The stability of the zero point and indication of the belt during operation is enhanced, effectively overcoming errors caused by spring deformation, belt deviation, and roller friction. There is no ear pivot friction, which is naturally conducive to improving measurement accuracy;
Secondly, it has strong anti-interference ability. Through experiments, the fully suspended scale frame can effectively resist the effects of changes in material flow rate and uneven material block size, and can effectively overcome the influence of lateral forces;
Thirdly, it is rigid enough to prevent deformation and avoid resonance phenomena during operation; The fifth is that the horizontal surface is small, with less dust accumulation, and weighing is almost unaffected by dust accumulation.
(2) Weighing sensor
The signal mode of Guonuo Technology's new industrial electronic belt scale weighing sensor is digital, with a cantilever beam structure. Its characteristics include good automatic centering after being subjected to force, small size, strong anti bias load ability, stronger anti-interference ability of digital signals, and accurate signal transmission.
(3) Speed measuring device
The speed sensor of Guonuo Technology's new industrial electronic belt scale adopts a unique dual wheel structure, contact speed measurement, and rubber coating design to prevent jumping and accurately reflect the running speed of the belt. In order to improve the reliability of speed measurement, a soft connection has been improved between the speed measuring drum and the speed measuring sensor, avoiding measurement errors caused by unreliable connections.
(4) Instrument
Guonuo's new industrial electronic belt scale is equipped with a high-performance processor instrument, which quickly processes and displays sensor signals without delay in data processing. Built in temperature sensor, real-time monitoring and compensation of on-site temperature changes to avoid measurement errors caused by temperature changes. The instrument configuration has intelligent software with self-monitoring, self diagnosis, and self alarm functions, which can monitor the real-time operation status of the belt scale and improve its stability.
(5) Verification
Although Guonuo's new industrial electronic belt scale runs stably and does not require frequent calibration, it may also need to be recalibrated due to operational issues. Guonuo Technology's new industrial belt scale has a one click calibration function, which is simple to calibrate and of great significance for maintaining the stability of the belt scale.
(6) Substation
Guonuo Technology's new industrial electronic belt scale configuration substation provides support for improving data processing and transmission efficiency, as well as facilitating centralized display of data.
In practical applications, Guonuo Technology's new electronic belt scale has higher weighing accuracy and stability, simpler and more convenient operation, less maintenance, and more complete management functions.
