In industries such as coatings, building materials, and chemicals, it is necessary to mix multiple materials in precise proportions for production. Due to the wide variety of products and significant changes in formulas, it is also possible to change the type, proportion, and weight of raw materials during the production process.
At present, many industries still use manual weighing configuration or mechanical methods with low automation for ingredient preparation. Due to the emotional state of personnel and prolonged exposure to dry work environments, inaccurate weighing is inevitable, resulting in significant losses. In addition, weighing, reading, and adding materials require multiple people to do them simultaneously, which wastes manpower.
Automatic weighing and batching machines were developed to solve the problem of manual or mechanized batching.
It achieves the automation and intelligence of the ingredient process, as well as the informatization and efficiency of ingredient supervision, by introducing automation technology and intelligent control systems.
It utilizes advanced sensing technology and control systems to achieve high precision in material weighing and automation of the batching process, resulting in improved efficiency and accuracy in batching.

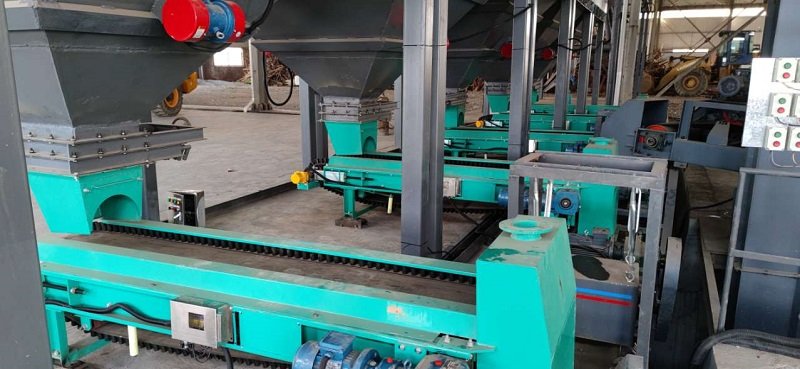

Automatic weighing and batching machine is a new industrial production batching technology solution. The automatic batching machine includes a frame, a material bin, a conveying mechanism, a weighing device, and a control device.
There is a conveying structure below the silo, which is equipped with a weighing device including a weight sensor, and a flow sensor. The real-time weight of the conveyed material can be measured through two types of sensors.
The control device will set up formula parameters, including proportioning and other data, to compare material weight and parameters in real-time, and complete feeding control when they are consistent.
From the general components and functions of the automatic weighing and batching machine mentioned above, it can be seen that it realizes the automation of the batching process, including automatic batching, automatic adjustment, automatic recording, and alarm prompts. In addition to automatic batching, the batching machine can also adjust the batching ratio and control the feeding amount according to different production needs.
When the management system formula is modified, the batching machine adjusts the batching ratio and controls the feeding amount according to the new formula, changing the complexity, rigidity, and lag of previous ingredient modifications.
At the same time, the data generated during the ingredient process is automatically recorded and transmitted, allowing enterprises to better monitor the production process. Once abnormalities or equipment malfunctions are detected through automatic monitoring data, the batching machine immediately issues an alarm notification.
The application of automatic weighing and batching machines has brought many beneficial effects. By using this device, one person on site can even complete feeding control without the need for personnel, effectively reducing job positions, saving labor costs, and reducing the difficulty of manual operations;
Secondly, automated and intelligent production methods reduce errors caused by human factors, making the production process smoother, achieving precise control and adjustment of the ingredient process, and ensuring stable product quality;
In addition, by monitoring and recording production data in real-time, enterprises can better supervise the production process, optimize production processes, and regulate production plans, thereby better controlling production costs.
The automatic weighing and batching machine, as an efficient and accurate batching device, plays an important role in modern production processes and holds an unshakable position. It not only solves a series of problems with traditional ingredient methods, but also brings more efficient production methods and less production investment to enterprises.
