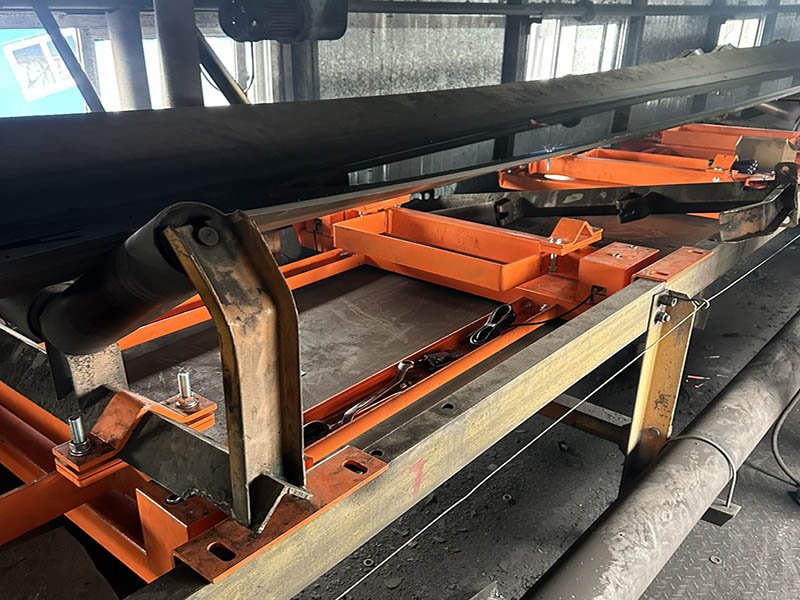

The fully suspended electronic belt scale is suspended by four pull type weighing sensors suspended on two crossbeams. Four sets of weighing rollers are placed on the scale frame, and the structure of the scale frame does not have ear pivot points, making the weighing section more direct and effective, reducing errors caused by ear pivot points and spring plates to the measuring system.
However, in actual use, it may be affected to some extent by belt deviation and uneven material distribution. Therefore, as a professional electronic belt scale manufacturer, Guonuo Technology improves the application measurement accuracy and stability of fully suspended electronic belt scales from multiple aspects.
(1) Weighing sensor
Guonuo Technology has equipped the fully suspended electronic belt scale with a highly sensitive and anti-interference digital weighing sensor, a cantilever beam structure, good resistance to lateral forces and eccentric loads, and strong anti-interference ability, which can effectively improve the measurement accuracy in practical applications.
(2) Speed measuring device

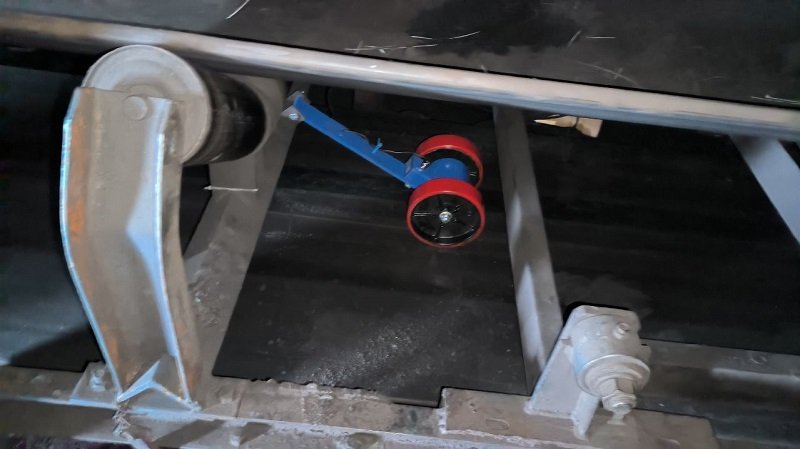

The speed sensor is the source of the belt speed signal for the electronic belt scale. Guonuo Technology is equipped with a contact type speed measurement device with a double wheel trolley structure, a rubber wrapped design to prevent jumping, a simple structure, and easy installation and maintenance.
A soft connection is used between the speed measuring drum and the speed measuring sensor to avoid inaccurate measurement caused by unreliable connection between the speed measuring drum and the speed measuring sensor. Guonuo Technology's speed sensor adopts a DC pulse generator, which is wear-resistant, durable, and has a long service life. It can operate reliably in harsh industrial environments.
(3) Instrument
As the core of signal reception, data processing and display in belt scales, the performance of instruments also affects the measurement accuracy and stability of fully suspended electronic belt scales. The Guonuo Technology belt scale instrument adopts a high-performance processor that can receive signals in real time and process them, with compensation function to improve the measurement accuracy of the fully suspended electronic belt scale. At the same time, the instrument has fault monitoring and diagnostic functions, improving the measurement stability of the fully suspended electronic belt scale.
(4) Scale frame
Guonuo Technology's fully suspended electronic belt scale frame adopts a rigid structure, with strong load-bearing capacity and durability. The scale frame is suspended by four weighing sensors, and the effective weighing section is long. The stability of the zero point and indication of the belt during operation is enhanced. The fully suspended electronic belt scale frame has sufficient self weight to avoid resonance during operation.
(5) Limit device
The limit device of Guonuo Technology's fully suspended electronic belt scale has sufficient strength to resist horizontal impact force, and will not deform due to temperature, avoiding the impact force affecting the scale frame or the deformation of the scale frame affecting the measurement.
The accuracy of electronic belt scales is not only related to their own performance, but also closely related to installation and debugging. Therefore, in addition to improving and enhancing the various components and technical functions of the fully suspended electronic belt scale, Guonuo Technology provides professional after-sales installation and commissioning services to ensure that the fully suspended electronic belt scale can be installed correctly and reasonably, avoiding installation problems that affect its use, and enabling it to fully realize its performance and value.
The fully suspended electronic belt scale can be said to be a high-precision electronic belt scale, but it also has high requirements for environmental conditions. In order to achieve measurement accuracy, Guonuo Technology not only improves the structure and technical functions, but also provides professional after-sales service to ensure its accuracy and stability in practical applications.
